10G DWDM XFP Optical Transceiver Module

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-XFP-DWDM-Cxx
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
Delivery Time: 2-5 days
Payment Terms: T/T, Western Union , L/C ,AliExpess , Alipay , etc
Supply Ability: 1500 pieces / month
  • Detail Information
  • Product Description

Detail Information

Part Number: XFP-10G - DWDM-xx Data Rate: 10.31Gbps
Transfer Reach: 80km Wavelength: 100GHZ ITU DWDM
Connector: Duplex LC Fiber Type: Single Mode
High Light:

fiber optic module

,

optical fiber transceiver

Product Description

Compatible CISCO DWDM-XFP-1530.33 10G XFP Transceiver DWDM OC-192/STM-64/10G SONET ZR

Hilink 10Gb/s XFP transceiver complies with the current XFP Multi-Source Agreement (MSA) Specification INF-8077i

It supports multiple protocols for point-to-point, and amplified 10G DWDM applications with a maximum link length of 80km.

This multi-rate DWDM XFP supports clock and data recovery for 8Gb/s Fibre Channel, 10Gb/s CPRI wireless, 10Gb/s SONET/SDH, 10Gb/s 10GBASE-ZR ethernet, and OTN/FEC protocols up to 11.32Gb/s.

The digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The optical transceiver is compliant per the RoHS



Description

  • Supports 8.5Gb/s to 11.32Gb/s including 10G CPRI
  • Hot-pluggable XFP footprint
  • Temperature-stabilized DWDM EML transmitter
  • RoHS-6 Compliant (lead-free)
  • 100GHz ITU Grid, C-Band
  • Duplex LC connector
  • Power dissipation <3.5W
  • Built-in digital diagnostic functions
  • Temperature range: 0°C to 70°C

Quick View

Part Number HX-DXX-R80
Datarate 10Gb/ps
Wavelenth DWDM 1530.33-1561.42nm
Distance 80km
Transmitter Cool EML
Receiver APD
Media SMF
DDM/DOM YES
Connector LC
Application Datacom 10G Ethernet/ 10x FC Telcom OC192/STM-64
Operating Temperature 0℃~ +70℃
Voltage Supply 3.3V
Certification CE/FCC/RoHS/TUV/UL
Brand

CISCO,Hilink, OEM



PRODUCT SHOW :

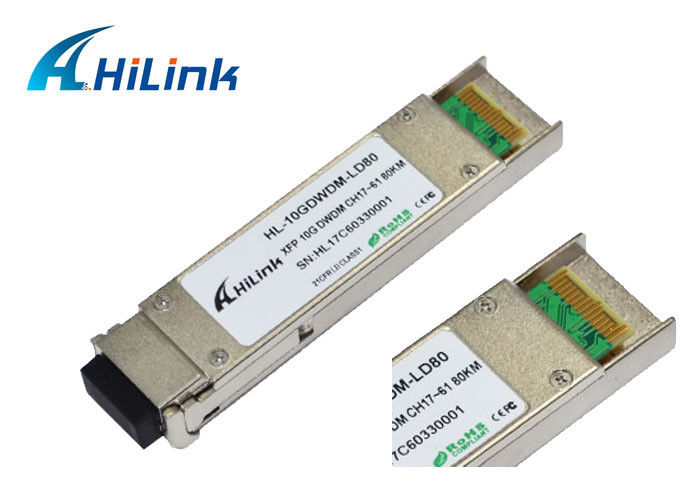

10G DWDM XFP Optical Transceiver Module 0
10G DWDM XFP Optical Transceiver Module 1
10G DWDM XFP Optical Transceiver Module 2
