High performance 1270nm~1610nm 16ch cwdm mux demux With LC/APC or SC/APC connector
1. Features
Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:From 1260nm to 1620nm
Wide Operating Temperature:From -40°C to 85°C
High Reliability and Stability
2. Applications
CWDM System
FTTX
PON Networks
CATV Links
Metro ethernet
3. Compliance
Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
4. Specifications
NCH DWDM Optical Add/Drop Module
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.
1×N CWDM Mux/Demux Module
Parameters | 1x2 | 1x4 | 1x8 | 1x16 | ||
Center Wavelength (nm) | ITU, ITU+1 | |||||
Passband (nm) | ITU±6.5 | |||||
Operating Wavelength (nm) | 1460~1620 or 1260~1620 | |||||
Channel Space (nm) | 20 | |||||
Fiber Type | SMF-28e or customer specified | |||||
IL (dB) (P/A Grade) | 0.7/1.0 | 1.4/1.7 | 2.0/2.5 | 2.5/3.0 | ||
Isolation (dB) | Adjacent Channel | 30 | ||||
Non-Adjacent Channel | 50 | |||||
Ripple (dB) | 0.3 | 0.4 | 0.5 | 0.5 | ||
PDL (dB) | 0.2 | |||||
PMD (ps) | 0.1 | |||||
RL (dB) | 45 | |||||
Directivity (dB) | 50 | |||||
Maximum Optical Power (mw) | 500 | |||||
Operating Temperature (°C) | -40~85 | |||||
Storage Temperature (°C) | -40~85 | |||||
BOX Package (mm) | 100*80*10 | 140*115*18 | ||||
LGX Package | 1U, 2U | |||||
19’’ Rack mount Package | 1U |

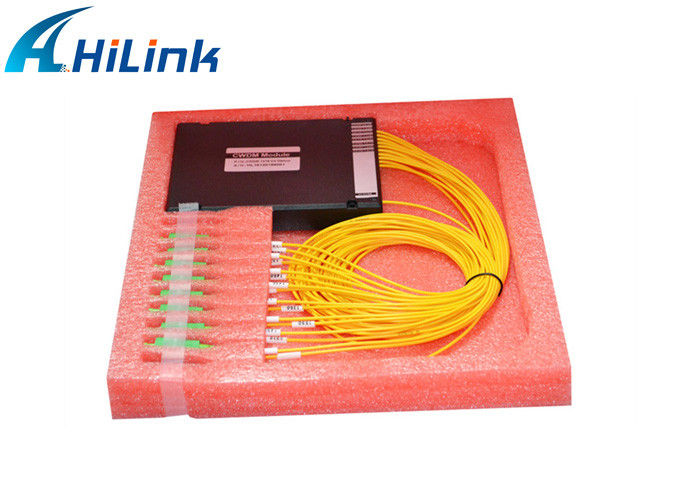

Real Photo Show
OEM and ODM
OEM/ODM order is available.
Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
What we supply
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.
