Name: 8 CWDM Channels 1470-1610nm Mux Demux with Monitor and Expansion Port Dual Fiber LC/UPC
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-CWDM-MUX
Price: 160.00 USD
Availability: InStock

Home > Products > CWDM Mux Demux Module >

8 CWDM Channels 1470-1610nm Mux Demux with Monitor and Expansion Port Dual Fiber LC/UPC

8-channel CWDM Mux Demux with monitor

dual fiber LC/UPC CWDM module

1470-1610nm CWDM Mux Demux expansion

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE FCC Rohs

Model Number:

HL-CWDM-MUX

Request A Quote

8 CWDM Channels 1470-1610nm Mux Demux with Monitor and Expansion Port Dual Fiber LC/UPC

Product Details

Product Name:

8 CWDM Channels 1470-1610nm Mux Demux With Monitor And Expansion Port Dual Fiber LC/UPC

Package:

LGX

Wavelength:

1270~1610nm

Channel Space:

20nm

Connector:

LC UPC

Operating Temperature:

-20 To +70℃

Logo:

Customized

Certificate:

FCC CE RoHS

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Negotiable

Packaging Details

Plastic packaging, Carton

Payment Terms

T/T,Western Union,MoneyGram,Paypal

Supply Ability

200PCS/month

LGX Cassette CWDM MUX DEMUX 4 Channels 1470/1490/1590/1610nm Dual Fiber CWDM Mux Demux

Get Best Price

Dual Fiber Multiplexer CWDM Mux Demux Module 19" 1U Rachmount Type

Get Best Price

FWDM Filter Mini ABS Box TX1550 RX 1310nm 1490nm SC UPC SC APC

Get Best Price

Optical Add - Drop Multiplexer 2CH 4CH 8CH CWDM OADM For Flexible FTTx Network Use

Get Best Price

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

8 CWDM Channels 1470-1610nm Mux Demux with Monitor and Expansion Port Dual Fiber LC/UPC

Product Overview

8 CWDM Channels 1470-1610nm Mux Demux with Monitor and Expansion Port Dual Fiber LC/UPC

Key Features

Very Low Insertion Loss
High Isolation
High Reliability and Stability
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)
Operating Temperature: -20 to +70℃
Industrial Operating Temperature: -40 to +80℃

Applications

CWDM System
Add/Drop
PON Networks
CATV Links

Compliance

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS

Technical Specifications

Parameter	Mux	Demux
Operating Wavelength Range	1260-1620 nm
CWDM Channel Range	1460-1620 nm
CWDM Channel Central Wavelength (λc)	1471, 1491, 1511, 1531, 1551, 1571, 1591 & 1611 nm
1310 Band Wavelength Range	1260-1360 nm
CWDM Channel Spacing	20 nm
CWDM Channel Pass Band	≥ λc ± 6.5 nm
CWDM Channel Insertion Loss	≤ 3.2 dB
1310 Band Insertion Loss	≤ 0.8 dB
CWDM Pass Band Ripple	≤ 0.3 dB
CWDM Adjacent Channel Isolation	≥ 15 dB	≥ 35 dB
CWDM Non-Adjacent Channel Isolation	≥ 15 dB	≥ 45 dB
1310 Band Isolation	≥ 45 dB
Directivity	≥ 50 dB
Return Loss	≥ 45 dB
PDL	≤ 0.15
Maximum Power	300 mW
Operating Temperature	-5°C ~ +65°C
Storage Temperature	-40°C ~ +85°C
Package Dimensions	100 mm x 90 mm x 7 mm

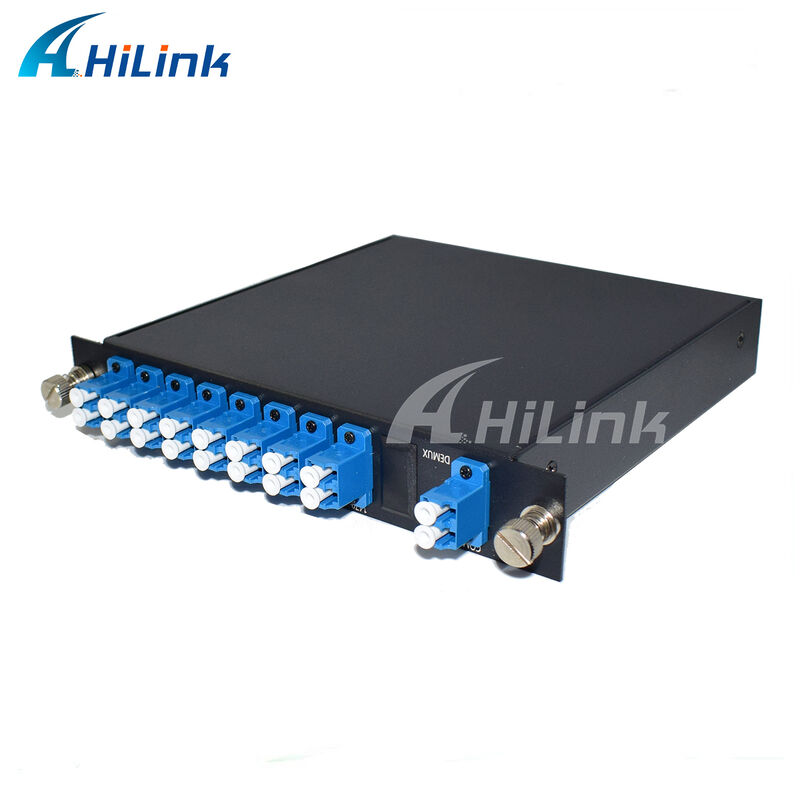

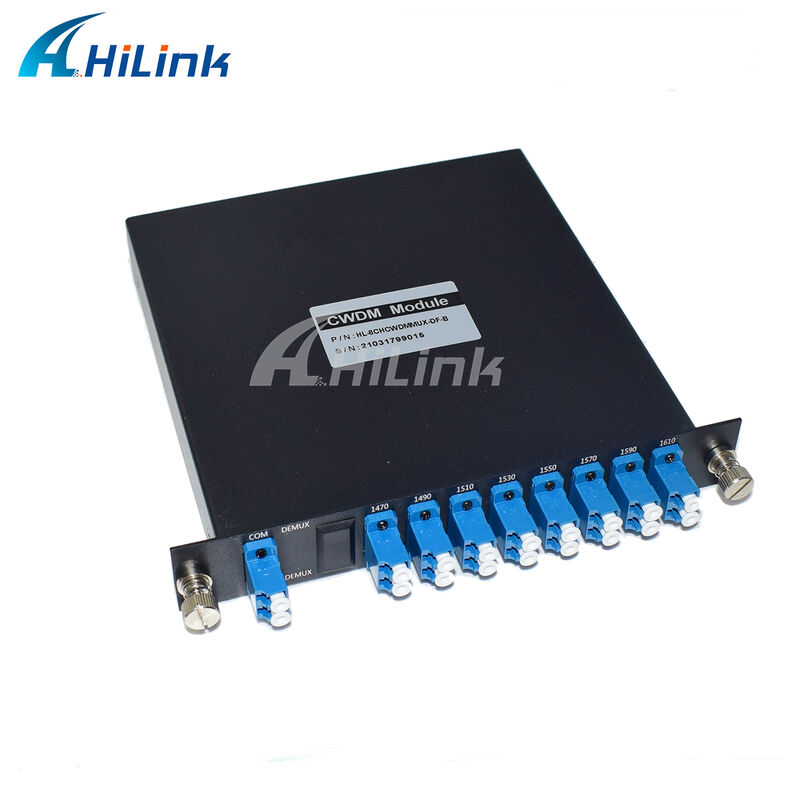

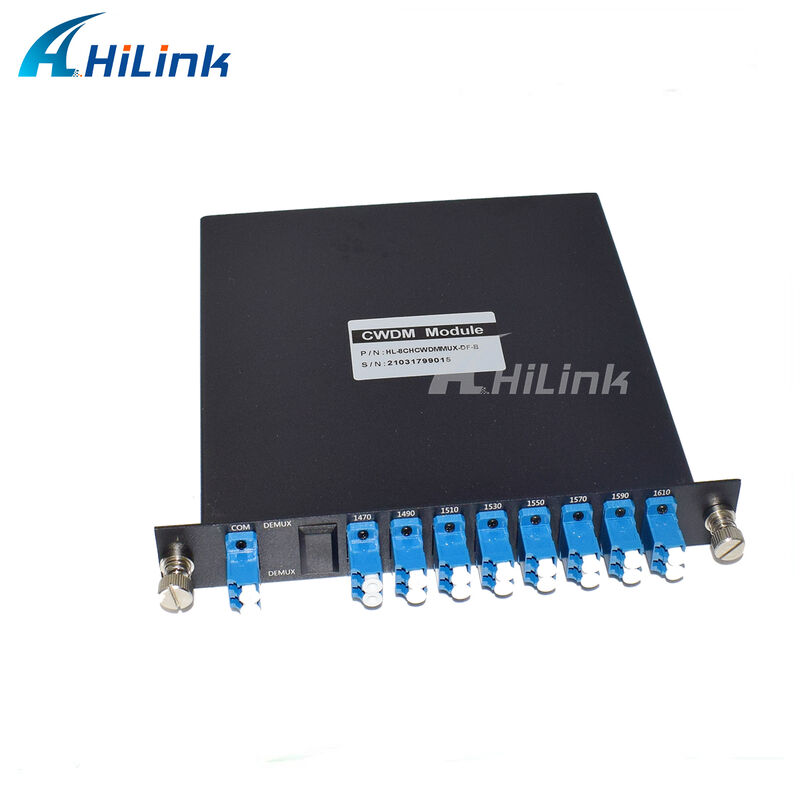

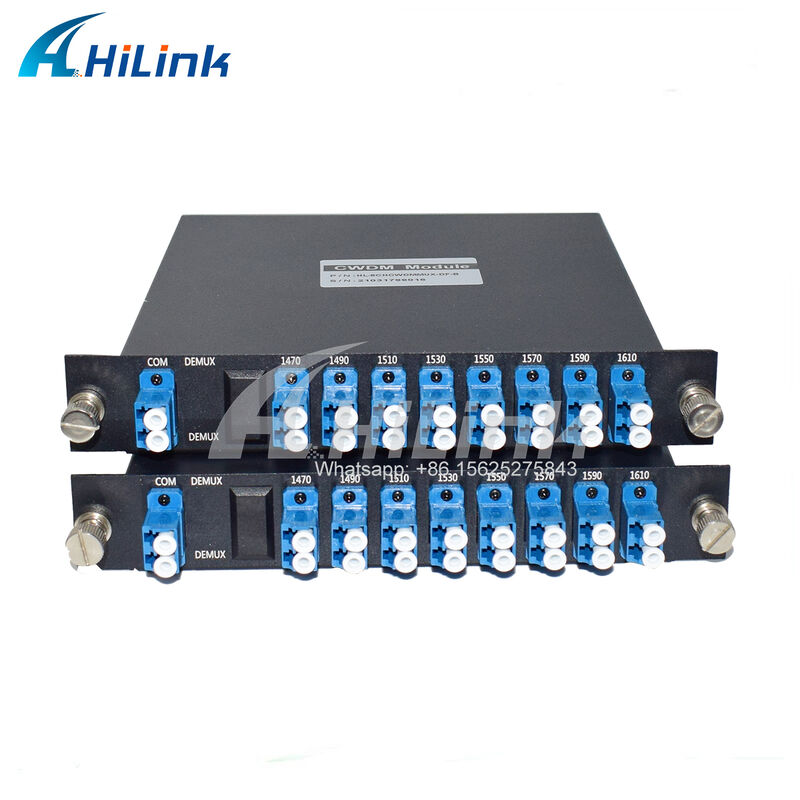

Product Images

Order Information

HL Configuration	Number of Channels	1st Channel	Fiber Type	Fiber Length	In/Out Connector
HL-Hilink M=Mux D=Demux O=OADM	04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel ……	27=1270nm 47=1470nm 49=1490nm …… 61=1610nm SS=special	1=Bare fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable	1=1m 2=2m S=Specify	0=None FA=FC/APC FP=FC/PC SA=SC/APC SP=SC/PC LP=LC/UPC ……

Hilink Advantages

1. Hilink, a professional manufacturer established in 2007, specializing in optical network communications with over 10 years experience.

2. "Credit is the basis, quality is the first" - all our products are new, we never use second-hand components.

3. Our optical transceivers are compatible with Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

4. We provide 3 years warranty for all our fiber optical products from the date of shipment.

5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE, ROHS, FCC.

6. We also provide DWDM CWDM WDM optical solutions.

Frequently Asked Questions

Can I have a sample order? What is your MOQ?

Sample order is supported for testing the quality of goods. 1 piece is the MOQ. Mixed samples are acceptable.

What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.

What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days.

What is your warranty?

3-year warranty. You'll get technique support, replacement or refund.
