Name: LGX Cassette CWDM MUX DEMUX 4 Channels 1470/1490/1590/1610nm Dual Fiber CWDM Mux Demux
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-CWDM-MUX
Price: 160.00 USD
Availability: InStock

Home > Products > CWDM Mux Demux Module >

LGX Cassette CWDM MUX DEMUX 4 Channels 1470/1490/1590/1610nm Dual Fiber CWDM Mux Demux

4 channel CWDM MUX DEMUX module

dual fiber CWDM Mux Demux

1470nm 1610nm CWDM MUX DEMUX

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE FCC Rohs

Model Number:

HL-CWDM-MUX

Request A Quote

LGX Cassette CWDM MUX DEMUX 4 Channels 1470/1490/1590/1610nm Dual Fiber CWDM Mux Demux

Product Details

Product Name:

CWDM MUX DEMUX 4 Channels 1470/1490/1590/1610nm Dual Fiber

Package:

LGX

Wavelength:

1270~1610nm

Channel Space:

20nm

Connector:

LC UPC

Operating Temperature:

-20 To +70℃

Logo:

Customized

Certificate:

FCC CE RoHS

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Negotiable

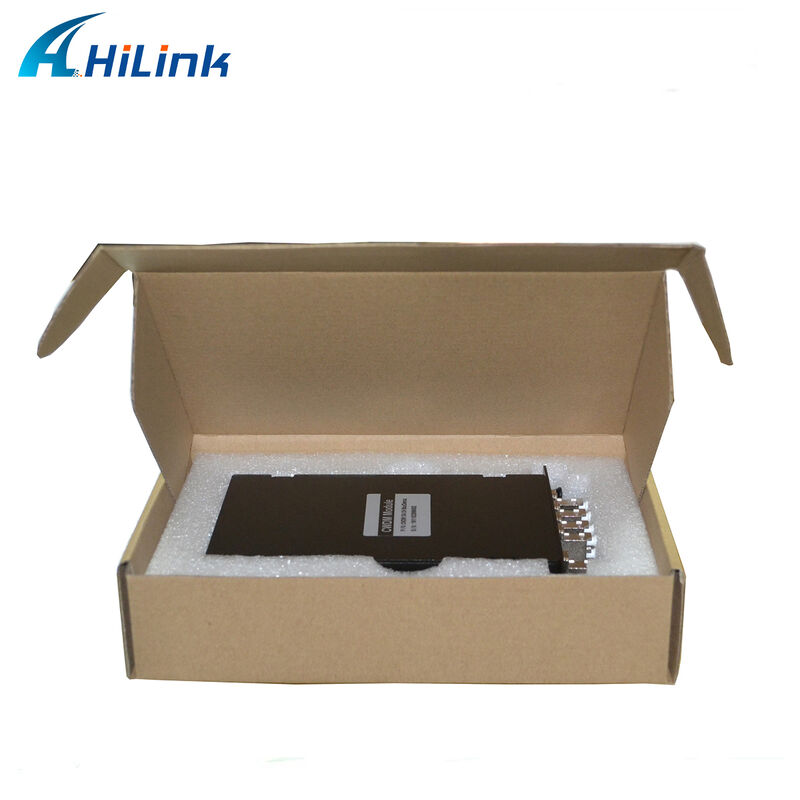

Packaging Details

Plastic packaging, Carton

Payment Terms

T/T,Western Union,MoneyGram,Paypal

Supply Ability

200PCS/month

LGX Cassette CWDM MUX DEMUX 4 Channels 1470/1490/1590/1610nm Dual Fiber CWDM Mux Demux

Get Best Price

Dual Fiber Multiplexer CWDM Mux Demux Module 19" 1U Rachmount Type

Get Best Price

FWDM Filter Mini ABS Box TX1550 RX 1310nm 1490nm SC UPC SC APC

Get Best Price

Optical Add - Drop Multiplexer 2CH 4CH 8CH CWDM OADM For Flexible FTTx Network Use

Get Best Price

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

LGX Cassette CWDM MUX DEMUX 4 Channels 1470/1490/1590/1610nm Dual Fiber CWDM Mux Demux

Features

Low Insertion Loss
High Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength: From 1260nm to 1620nm
Wide Operating Temperature: From -40°C to 85°C
High Reliability and Stability

Applications

CWDM System
PON Networks
CATV Links

Compliance

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS

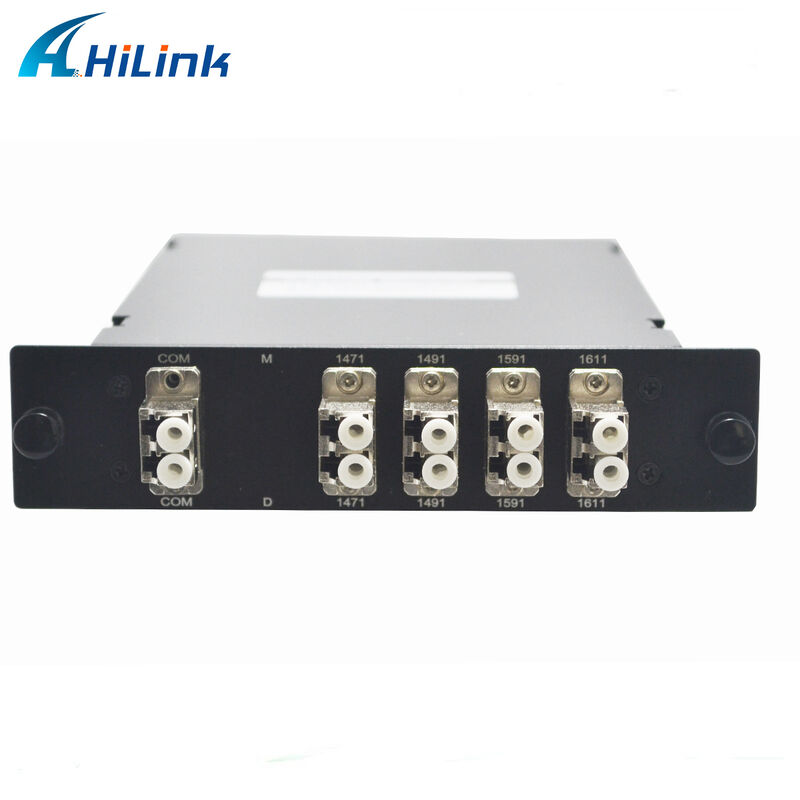

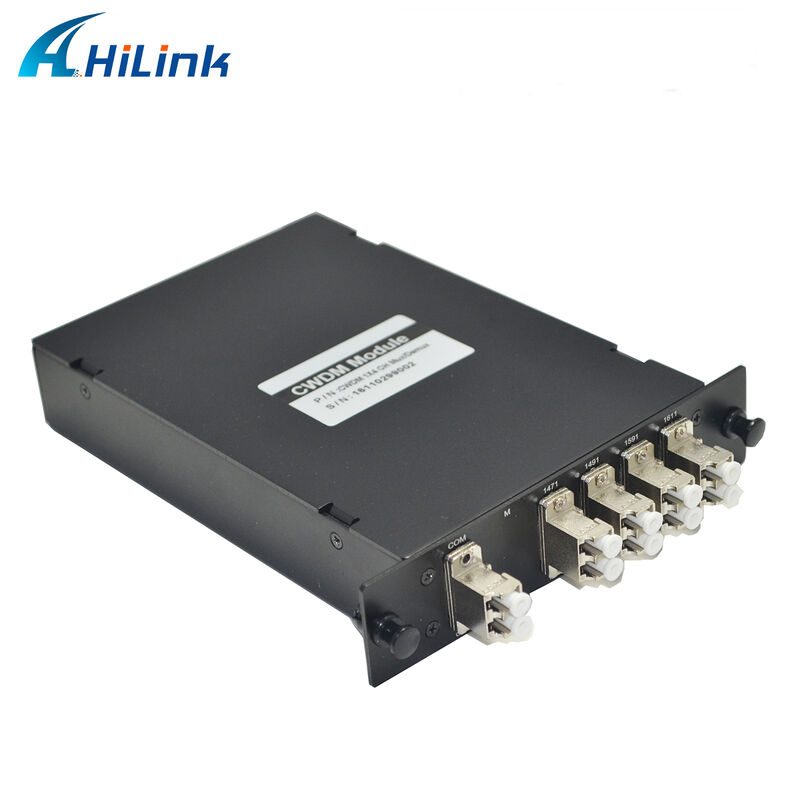

Product Images

Order Information

1×N CWDM Mux/Demux Module

Parameter	4 Channel	8 Channel	18 Channel
Channel Wavelength (nm)	1270~1610
Center wavelength Accuracy (nm)	±0.5
Channel Spacing (nm)	20
Channel Passband (@-0.5dB bandwidth (nm)	>13
Insertion Loss (dB)	≤1.6	≤2.5	≤3.0
Channel Uniformity (dB)	≤0.6	≤1.0	≤1.5
Channel Ripple (dB)	0.3
Isolation (dB) - Adjacent	N/A	>30	>30
Isolation (dB) - Non-adjacent	N/A	>40	>40
Insertion Loss Temperature Sensitivity (dB/°C)	<0.005
Wavelength Temperature Shifting (nm/°C)	<0.002
Polarization Dependent Loss (dB)	<0.1
Polarization Mode Dispersion	<0.1
Directivity (dB)	>50
Return Loss (dB)	>45
Maximum Power Handling (mW)	300
Operating Temperature (°C)	-5~+75
Storage Temperature (°C)	-40~85
Package dimension (mm)	L100 x W80 x H10 or L140xW100xH15

Hilink Advantages

Hilink, a professional manufacturer established in 2007, specializes in optical network communications with over 10 years experience.
"Credit is the basis, quality is the first" - all our products are new, we never use second-hand components.
Our optical transceivers are compatible with Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
We provide 3 years warranty for all our fiber optical products from the date of shipment.
All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE, ROHS, FCC.
We also provide DWDM CWDM WDM optical solutions.

Frequently Asked Questions

Can I have a sample order? What is your MOQ?

Sample order is supported for testing the quality of goods. 1 piece is the MOQ. Mixed samples are acceptable.

What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.

What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days.

What is your warranty?

3-year warranty. You'll get technique support, replacement or refund.
