Shenzhen HiLink Technology Co.,Ltd.

CCWDM-8CH Mini CWDM Mutiplexer Module LC/UPC Low PDL For CATV Link

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-CCWDM-MUX
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Plastic packaging, Carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200PCS/month
  • Detail Information
  • Product Description

Detail Information

Product Name: CCWDM-8CH Mux Package: 1U Rack / ABS (optional)
Wavelength: 1260~1625nm Channel Count: 8 Channels
Connector: LC UPC Operating Temperature: 0 To +70℃
Certificate: FCC CE RoHS Warranty: 3 Years
High Light:

Mini CWDM Mutiplexer Module

,

1625nm Mux Demux Module

,

Mux Demux Module For CATV Link

Product Description

CCWDM-8CH Mini CWDM Mutiplexer Module LC/UPC Low PDL for CATV Link




Hilink's Low Loss Compact Coarse Wavelength Division Multiplexer (CCWDM) is based on Thin-Film-Filter and Micro-Optics.This technology is a lead-free packaging platform with high reliability.



Highlights



* Mini form

* Ultra low loss

* High channel isolation



Features



* Ultra-Low Insertion Loss

* High Isolation

* Low PDL

* Compact Design

* Good channel-to-channel uniformity

* Mounted in 19" 1U Racks or ABS box optional

* Wide Operating Wavelength: From 1260nm to 1620nm

* Wide Operating Temperature: From -40℃ to 85℃

* High Reliability and Stability



Compliance



  • * Telcordia GR-1209-CORE-2001

  • * Telcordia GR-1221-CORE-1999

  • * RoHS

  •

Description

Unit

Min

Typical

Max.

Optional channel loss

dB



0.8

1.1

Pass band width

nm

13





Flatness

dB



0.3

0.5

Adjacent channel isolation

dB

30

35



Non adjacent channel isolation

dB

40

45



Directivity

dB

55





PDL

dB





0.2

PMD

ps





0.2

Max. power

mw

500

Pass channel insertion loss

P

dB

0.8

1.0

A

1.0

1.5

Channel wavelength

nm

1471 1491 1511 1531 1551 1571 1591 1611

Can be selected on request or any 4channel between 1260-1625

Operating temperature

°C

0 ~+70

Storage temperature

°C

-40 ~+85

Package

mm

43(L)X28(W)X6(H) or customerized



Applications



* CWDM System

* PON Networks

* CATV Links

* WDM Network





Details Images

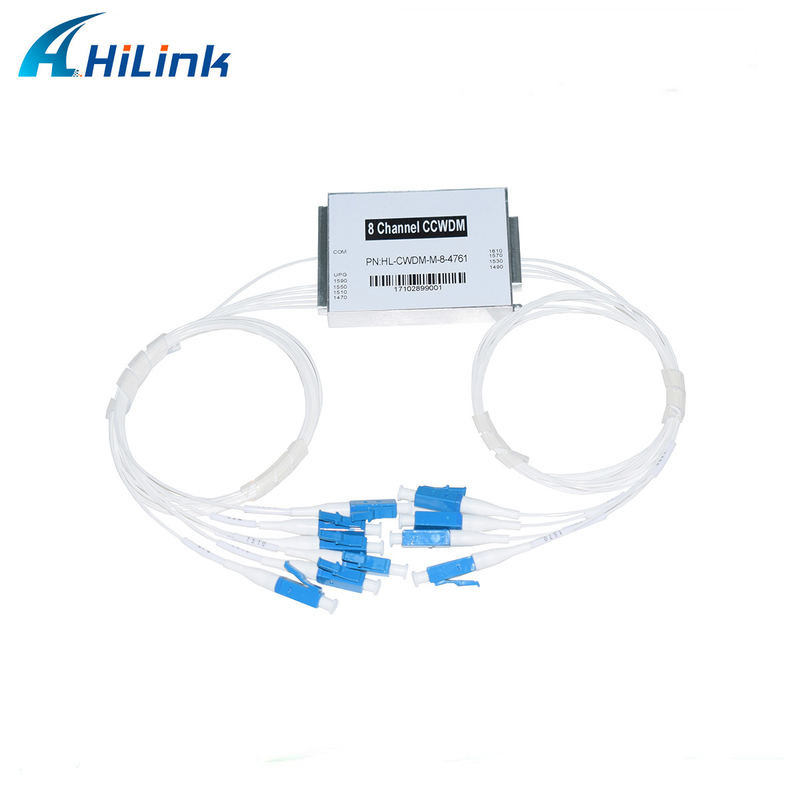

CCWDM-8CH Mini CWDM Mutiplexer Module LC/UPC Low PDL For CATV Link 0CCWDM-8CH Mini CWDM Mutiplexer Module LC/UPC Low PDL For CATV Link 1







Hilink Advantages


1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
    Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc
.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.


FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.



2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
