18CH CCWDM Mutiplexer Module LC / UPC For WDM Network Mini

18CH CCWDM Mutiplexer Module LC / UPC For WDM Network Mini

Product Details:

Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-CCWDM-MUX

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Plastic packaging, Carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200PCS/month
Get Best Price Contact Now

Detail Information

Product Name: CCWDM 18CH Mux Package: 1U Rack / ABS (optional)
Wavelength: 1260~1625nm Channel Count: 18CH
Connector: LC UPC Operating Temperature: 0 To +70℃
Certificate: CE RoHS FCC Warranty: 3-year Warranty
High Light:

18CH CCWDM Mutiplexer

,

Mutiplexer Module LC/UPC

,

WDM Network Mini CWDM Module

Product Description

18CH CCWDM Mutiplexer LC/UPC for WDM Network Mini CWDM Module




Hilink's Low Loss Compact Coarse Wavelength Division Multiplexer (CCWDM) is based on Thin-Film-Filter and Micro-Optics.This technology is a lead-free packaging platform with high reliability.



Highlights



* Mini form

* Ultra low loss

* High channel isolation.



Features



* Ultra-Low Insertion Loss

* High Isolation

* Low PDL

* Compact Design

* Good channel-to-channel uniformity

* Mounted in 19" 1U Racks or ABS box optional

* Wide Operating Wavelength: From 1260nm to 1620nm

* Wide Operating Temperature: From -40℃ to 85℃

* High Reliability and Stability



Compliance



  • * Telcordia GR-1209-CORE-2001

  • * Telcordia GR-1221-CORE-1999

  • * RoHS

  •

Description

Unit

Min

Typical

Max.

Optional channel loss

dB



0.8

1.1

Pass band width

nm

13





Flatness

dB



0.3

0.5

Adjacent channel isolation

dB

30

35



Non adjacent channel isolation

dB

40

45



Directivity

dB

55





PDL

dB





0.2

PMD

ps





0.2

Max. power

mw

500

Pass channel insertion loss

P

dB

0.8

1.0

A

1.0

1.5

Channel wavelength

nm

1471 1491 1511 1531 1551 1571 1591 1611

Can be selected on request or any 4channel between 1260-1625

Operating temperature

°C

0 ~+70

Storage temperature

°C

-40 ~+85

Package

mm

43(L)X28(W)X6(H) or customerized



Applications



* CWDM System

* PON Networks

* CATV Links

* WDM Network





Details Images

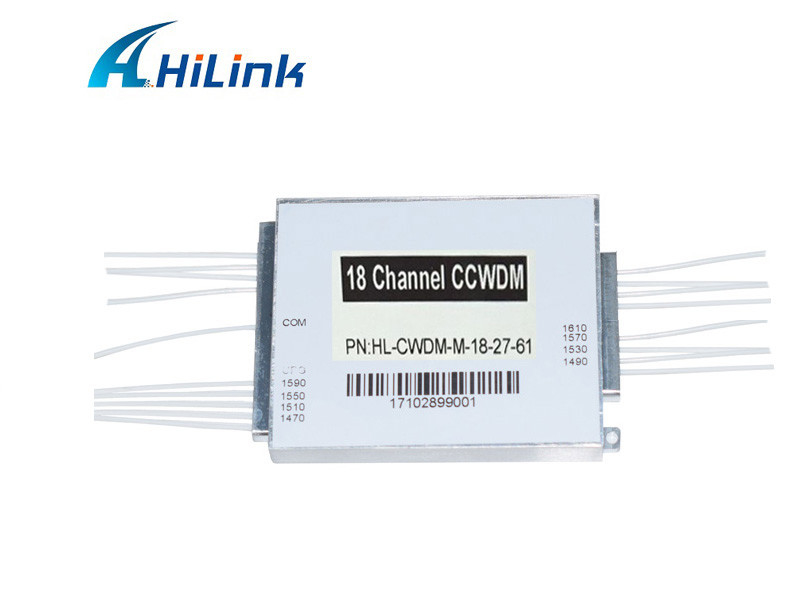

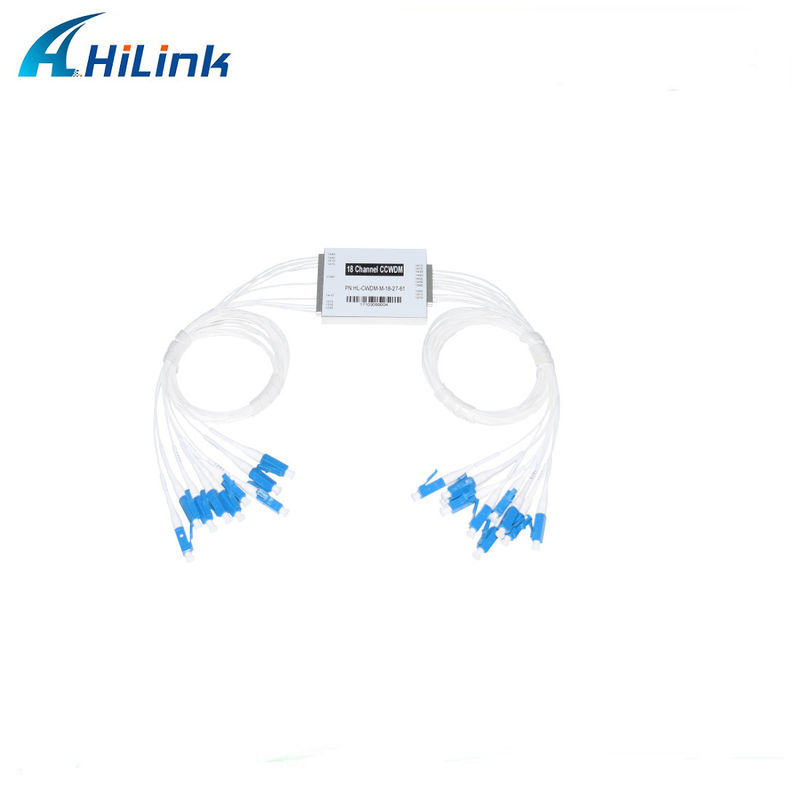

18CH CCWDM Mutiplexer Module LC / UPC For WDM Network Mini 018CH CCWDM Mutiplexer Module LC / UPC For WDM Network Mini 118CH CCWDM Mutiplexer Module LC / UPC For WDM Network Mini 2



Hilink Advantages


1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
    Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc
.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
