1470 - 1530 nm LGX Box CWDM Mux Demux Module 4 Channel With LC / APC Connector

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-CW-mux-Nch
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: box & carton or customized package
Delivery Time: 1-6working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 5000pcs/month
  • Detail Information
  • Product Description

Detail Information

Product Name: Cwdm Mux Demux Operating Wavelength: 1470-1530nm
Power Supply: Not Needed Option Channels: 2ch/4ch/8ch/12ch/16ch/18ch
Connector: SC FC LC APC UPC PC Logo: Can Be Customized
Package: ABS Box,LGX Box,19' 1u Rack Mount Warranty: 3 Years
High Light:

cwdm multiplexer


optical mux demux

Product Description

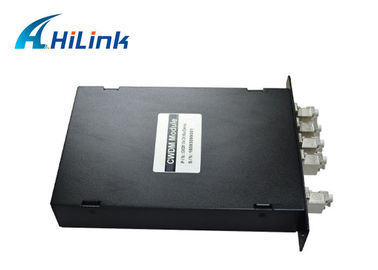

1470 - 1530 nm LGX Box CWDM Mux Demux Module 4 Channel With LC / APC Connector



Low Insertion Loss

High Isolation


Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength

From 1260nm to 1620nm

Wide Operating Temperature

From -40°C to 85°C

High Reliability and Stability



CWDM System

PON Networks

CATV Links



2~18Channels available.

Wavelength: 1270nm-1610nm
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
CWDM Solutions and CWDM SFP.

Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.


Performance Specifications


Parameter 4 Channel 8 Channel 18 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.6 ≤2.5 ≤3.0
Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40 N/A >40
Inertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifting (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Opterating Temperature (°C) -5~+75
Storage Temperature (°C) -40~85
Package dimension (mm) L100 x W80 x H10 or L140xW100xH15


Above specification are for device without connector.


Ordering Information

Configuration Number of Channels 1st Channel Fiber Type Fiber Length In/Out Connector

M=Mux D=Demux


04=4 Channel


08=8 Channel

16=16 Channel

18=18 Channel
N=N Channel




1=Bare fiber
Loose tube
3=2mm Cable
4=3mm Cable





Single Fiber CWDM Mux Demux Solution

1470 - 1530 nm LGX Box CWDM Mux Demux Module 4 Channel With LC / APC Connector 0


Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.



›& Brand new.

›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty (From the date of shipment).


Technician support

We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.

After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
