Product Details:

Place of Origin: China
Brand Name: Hilink
Certification: CE, ROHS, FCC
Model Number: CWDM Mux Demux

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Payment Terms: T/T, Western Union
Supply Ability: 100pcs/week
Get Best Price Contact Now

Detail Information

Wavelength: 1260-1610nm Line Type: Single Fiber
Channel Spacing: 20nm Return Loss: > 45 DB
Operating Temperature: -5°C~ +75°C Insertion Loss: < 2.8 DB
Connector: SC,FC,LC,ST Center Wavelength Accuracy: ± 0.5dB
High Light:

cwdm filter

,

optical mux demux

Product Description

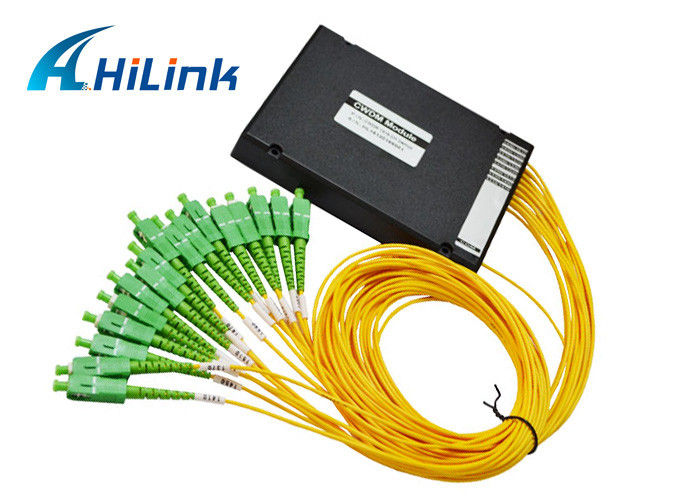

1260nm - 1610nm CWDM Mux Demux Module , 16 Channel CWDM Filter SC / APC

1260nm - 1610nm CWDM Mux Demux Module , 16 Channel CWDM Filter SC / APC



1. Features

  • Low Insertion Loss
  • High Isolation
  • Low PDL
  • Compact Design
  • Good channel-to-channel uniformity
  • Mounted in 191 u Racks or ABS box optional
  • Wide Operating Wavelength: From 1260nm to 1620nm
  • Wide Operating Temperature: From -40℃ to 85℃
  • High Reliability and Stability



2. Applications

  • CWDM System
  • PON Networks
  • CATV Links
  • WDM Network



3. Compliance

  • Telcordia GR-1209-CORE-2001
  • Telcordia GR-1221-CORE-1999
  • RoHS



Specifications



1×N CWDM Mux/Demux Module

Parameters 1x2 1x4 1x8 1x16
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1460~1620 or 1260~1620
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) (P/A Grade) 0.7/1.0 1.4/1.7 2.0/2.5 2.5/3.0
Isolation (dB) Adjacent Channel 30
Non-Adjacent Channel 50
Ripple (dB) 0.3 0.4 0.5 0.5
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Compact BOX Package (mm) 100*80*10 140*115*18
LGX Package 1U, 2U
19’’ Rack mount Package 1U



Notes:

1. Specified without connectors.

2. Add an additional 0.2dB loss per connector.

1260nm - 1610nm CWDM Mux Demux Module , 16 Channel CWDM Filter SC / APC 0



1260nm - 1610nm CWDM Mux Demux Module , 16 Channel CWDM Filter SC / APC 1



Ordering Information



Compact packing or 19 1Uracks

CWDM

Configuration

Number of Channels 1st Channel Fiber Type Fiber Length In/Out Connector
M=Mux D=Demux O=OADM

02=2Channel



08=8 Channel 16=16 Channel 18=18 Channel
N=N Channel

……

27=1270nm
47=1470nm
49=1490nm

……
61=1610nm
SS=special

1=Bare fiber
2=900um
Loose tube
3=2mm Cable
4=3mm Cable
1=1m
2=2m
S=Specify

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/UPC

……
