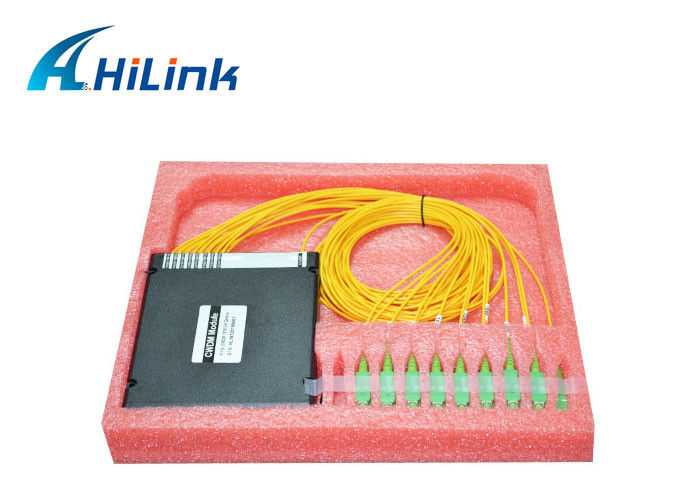

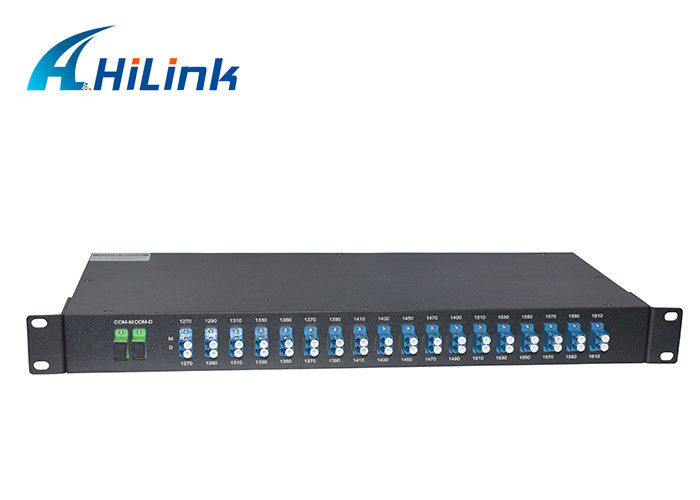

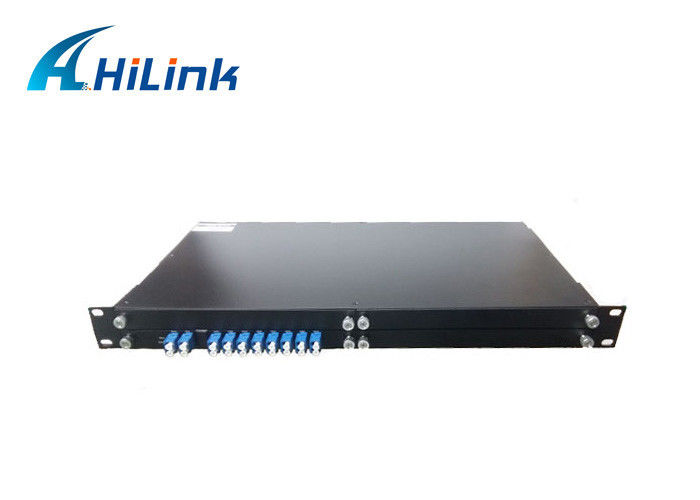

Passive ABS package 18CH CWDM Mux Demux Module

Passive ABS package 18CH CWDM Mux Demux Module

cwdm multiplexer

optical mux demux

18CH CWDM Mux Demux Module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-CWDM-Mux

Contact Us
Request A Quote
Product Details
Product Name:
CWDM Mux Demux
Operating Wavelength:
1270-1610nm
Option Channels:
2ch/4ch/8ch/12ch/16ch/18ch
Connector:
SC FC LC APC UPC PC
Logo:
Can Be Customized
Package:
LGX Box,19' 1u Rack Mount,ABS Box
Warranty:
3 Years
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
ABS box,LGX Box,19' 1U Rack mount
Payment Terms
T/T, Western Union,Paypal
Supply Ability
2000pcs/month
Product Description

Passive Equipment 2ch,4ch,8ch,16ch,18ch CWDM Mux Demux Module with ABS Box



CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.

Features:

Low Insertion Loss

High Isolation

High Reliability and Stability

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)

Wide Operating Temperature: -20 to +70℃

Applications:

CWDM System

Add/Drop

PON Networks

CATV Links

Compliance:

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS
