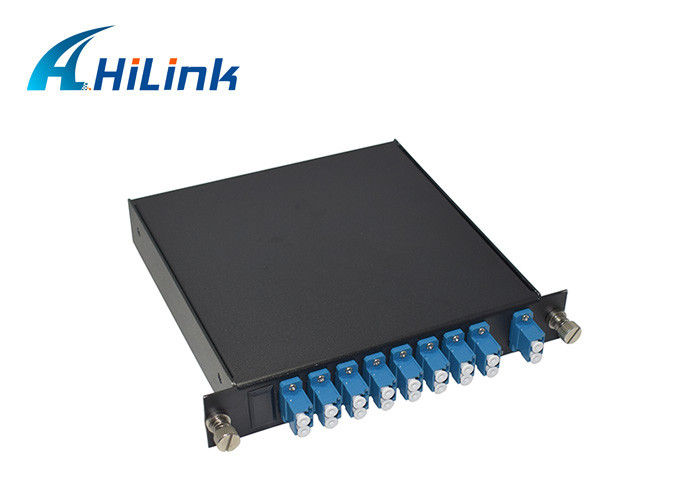

LGX Box 8Channels (1270-1410nm) Single Fiber CWDM Mux Demux LC/UPC Connector
Description
2~18Channels available.
Wavelength: 1270nm-1610nm
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
CWDM Solutions and CWDM SFP.
Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.
Features
Low Insertion Loss
Wide pass band
High channel Isolation
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength
From 1260nm to 1620nm
High Reliability and Stability
Applications
Performance Specifications
| Parameter | 4 Channel | 8 Channel | 18 Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength (nm) | 1270~1610 | ||||||
| Center wavelength Accuracy (nm) | ±0.5 | ||||||
| Channel Spacing (nm) | 20 | ||||||
| Channel Passband (@-0.5dB bandwidth (nm) | >13 | ||||||
| Insertion Loss (dB) | ≤1.6 | ≤2.5 | ≤3.0 | ||||
| Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple (dB) | 0.3 | ||||||
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
| Inertion Loss Temperature Sensitivity (dB/°C) | <0.005 | ||||||
| Wavelength Temperature Shifting (nm/°C) | <0.002 | ||||||
| Polarization Dependent Loss (dB) | <0.1 | ||||||
| Polarization Mode Dispersion | <0.1 | ||||||
| Directivity (dB) | >50 | ||||||
| Return Loss (dB) | >45 | ||||||
| Maximum Power Handling (mW) | 300 | ||||||
| Opterating Temperature (°C) | -5~+75 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| Package dimension (mm) | L100 x W80 x H10 or L140xW100xH15 | ||||||
Above specification are for device without connector.
Ordering Information
| Configuration | Number of Channels | 1st Channel | Fiber Type | Fiber Length | In/Out Connector |
|
M=Mux D=Demux O=OADM |
04=4 Channel
08=8 Channel 16=16 Channel 18=18 Channel …… |
27=1270nm …… |
1=Bare fiber 2=900um Loose tube 3=2mm Cable 4=3mm Cable |
1=1m 2=2m S=Specify |
0=None …… |
