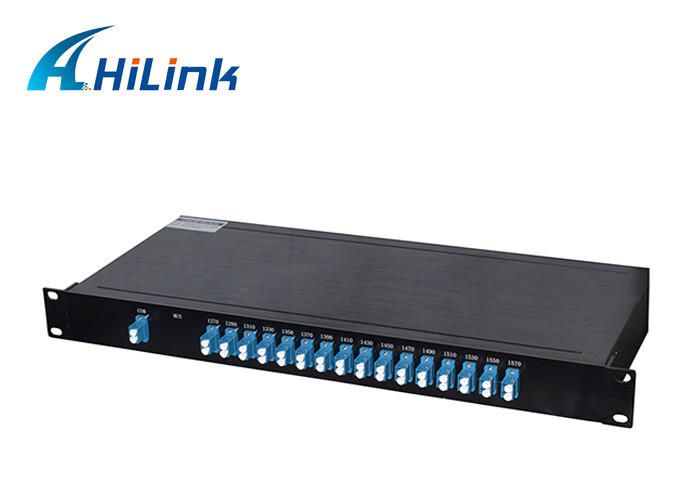

Name: 16 Channels Single Fiber CWDM Mux Demux Module LC/UPC Connector 1U Rack Mount
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-CW-mux-Nch
Price: 160.00 USD
Availability: InStock

Home > Products > CWDM Mux Demux Module >

16 Channels Single Fiber CWDM Mux Demux Module LC/UPC Connector 1U Rack Mount

cwdm multiplexer

cwdm filter

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-CW-mux-Nch

Request A Quote

16 Channels Single Fiber CWDM Mux Demux Module LC/UPC Connector 1U Rack Mount

Product Details

Channel Spacing:

20nm

Fiber Type:

SMF28e Or Specified

Option Channels:

2ch/4ch/8ch/12ch/16ch/18ch

Connector:

SC FC LC APC UPC PC

Operating Temperature:

-40°C To 85°C

Logo:

Can Be Customized

RoHS:

Compliant

Warranty:

3 Years

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

box & carton or customized package

Delivery Time

1-6working days

Payment Terms

T/T, Western Union, MoneyGram,Paypal

Supply Ability

5000pcs/month

Optical Add - Drop Multiplexer 2CH 4CH 8CH CWDM OADM For Flexible FTTx Network Use

Get Best Price

1490 ~ 1550nm CWDM Mux Demux Module 4CH Dual Fiber LC / UPC Plastic / ABS

Get Best Price

Passive 8 Channel CWDM MUX DEMUX Module 1270-1610nm ABS Box With Upgraded Port

Get Best Price

4CH Passive CWDM MUX DEMUX Module ABS Box 1270-1610nm With Express Port

Get Best Price

86-755-8317-6243

Contact Now

Product Description

1U Rack Mount 16Channels (1270-1570nm) Single Fiber CWDM Mux Demux LC/UPC Connector

Description

2~18Channels available.

Wavelength: 1270nm-1610nm
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
CWDM Solutions and CWDM SFP.

Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.

Features

Low Insertion Loss

Wide pass band

High channel Isolation

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength

From 1260nm to 1620nm

High Reliability and Stability

Applications

CWDM System
PON Networks
CATV Links
Access Network

Performance Specifications

Parameter		4 Channel		8 Channel		18 Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength (nm)		1270~1610
Center wavelength Accuracy (nm)		±0.5
Channel Spacing (nm)		20
Channel Passband (@-0.5dB bandwidth (nm)		>13
Insertion Loss (dB)		≤1.6		≤2.5		≤3.0
Channel Uniformity (dB)		≤0.6		≤1.0		≤1.5
Channel Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	>30	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40	N/A	>40
Inertion Loss Temperature Sensitivity (dB/°C)		<0.005
Wavelength Temperature Shifting (nm/°C)		<0.002
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion		<0.1
Directivity (dB)		>50
Return Loss (dB)		>45
Maximum Power Handling (mW)		300
Opterating Temperature (°C)		-5~+75
Storage Temperature (°C)		-40~85
Package dimension (mm)		L100 x W80 x H10 or L140xW100xH15

Above specification are for device without connector.

Ordering Information

Configuration

Number of Channels

1st Channel

Fiber Type

Fiber Length

In/Out Connector

M=Mux D=Demux

O=OADM

04=4 Channel

08=8 Channel

16=16 Channel

18=18 Channel
N=N Channel

……

27=1270nm
47=1470nm
49=1490nm

……
61=1610nm
SS=special

1=Bare fiber
2=900um
Loose tube
3=2mm Cable
4=3mm Cable

1=1m
2=2m
S=Specify

0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC

……

16 Channels Single Fiber CWDM Mux Demux Module LC/UPC Connector 1U Rack Mount 0

16 Channels Single Fiber CWDM Mux Demux Module LC/UPC Connector 1U Rack Mount 1

16 Channels Single Fiber CWDM Mux Demux Module LC/UPC Connector 1U Rack Mount 2

16 Channels Single Fiber CWDM Mux Demux Module LC/UPC Connector 1U Rack Mount 3

Shipment & Payment
1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
2. Payment: T/T, Western Union, Paypal and so on.

Guarantee

›& Brand new.

›& OEM/ODM is available.
›& 100% through quality test and aging test.
›& 3 years warranty (From the date of shipment).

Technician support

We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.

After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
