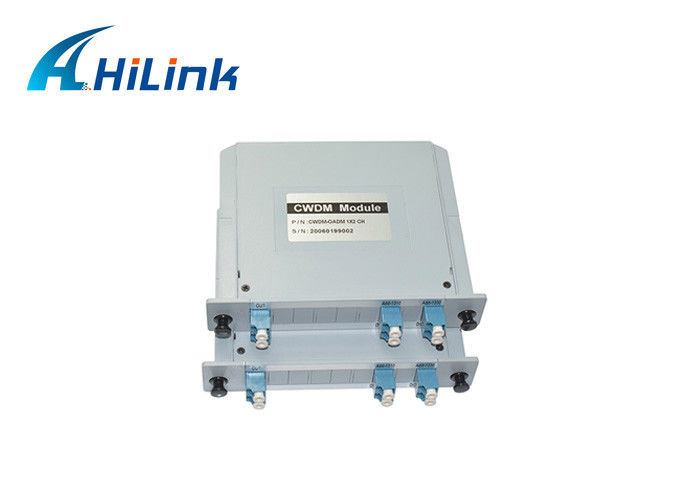

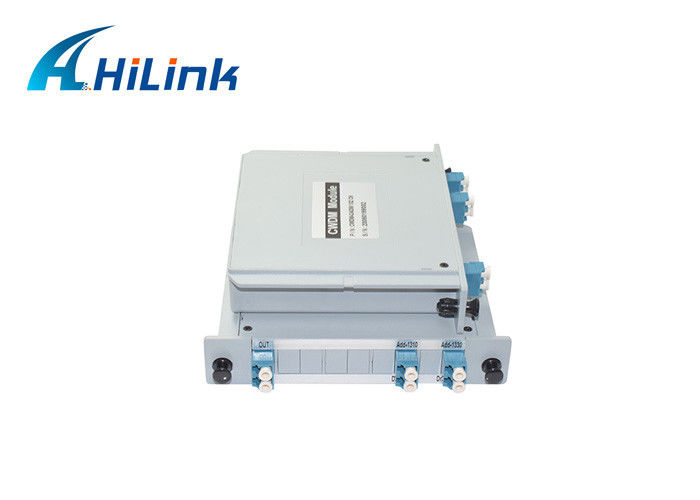

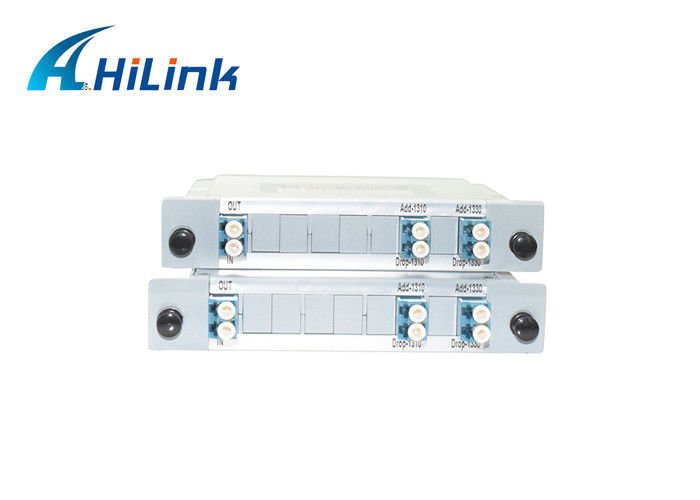

    1270-1610nm 1x2CH SMF CWDM Mux Demux Module

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE, Rohs, FCC
    Model Number: OADM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: 20 Centimeters * 17 Centimeters * 3 Centimeters
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 100/pcs/week
    Get Best Price Contact Now

    Detail Information

    Product Name: CWDM Add/Drop OADM Channel: 2,4,8,16,18ch Customized
    Connector: SC FC LC APC UPC PC Operating Wavelength: 1270-1610nm Customized
    Warranty: 3years
    High Light:

    1260nm optical mux demux

    ,

    oadm fiber optic mux

    Product Description

    1270-1610nm 1x2CH SMF CWDM Mux Demux Module

    Customizable CWDM 1270-1610nm OADM Add/Drop Multiplexer SMF 1x2CH LGX BOX With Adapters LC/UPC

    CWDM Add/Drop



    100GHz CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.

    Features

    Low Insertion Loss

    High Isolation

    Low PDL

    Compact Design

    Good channel-to-channel uniformity

    Wide Operating Wavelength

    From 1260nm to 1620nm

    Wide Operating Temperature

    From -40°C to 85°C

    High Reliability and Stability



    Applications

    CWDM System

    PON Networks

    CATV Links

    Telecommunication



    Description

    2~18Channels available.

    Wavelength: 1270nm-1610nm
    Com port: simplex or duplex.
    Fiber connector: LC/SC or other.
    Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
    CWDM Solutions and CWDM SFP.

    Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.

    OEM/ODM is acceptable, so tell us your requirements.



    1270-1610nm 1x2CH SMF CWDM Mux Demux Module 0



    Ordering Information

    Configuration Number of Channels 1st Channel Fiber Type Fiber Length In/Out Connector

    M=Mux D=Demux

    O=OADM

    04=4 Channel



    08=8 Channel

    16=16 Channel

    18=18 Channel
    N=N Channel

    ……

    27=1270nm
    47=1470nm
    49=1490nm

    ……
    61=1610nm
    SS=special

    1=Bare fiber
    2=900um
    Loose tube
    3=2mm Cable
    4=3mm Cable
    1=1m
    2=2m
    S=Specify
    0=None
    1=FC/APC
    2=FC/PC
    3=SC/APC
    4=SC/PC
    5=LC
