19" 1U CWDM Mux Demux Module 18CH 1270-1610nm Fiber Optical CWDM Mutiplexer

19" 1U CWDM Mux Demux Module 18CH 1270-1610nm Fiber Optical CWDM Mutiplexer

Product Details:

Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-CWDM-MUX

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Plastic packaging, Carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200PCS/month
Get Best Price Contact Now

Detail Information

Product Name: 19" 1U CWDM Mux Demux 18CH Chassis: 1U
Operating Temperature: -20 To +70℃ Connector: LC/UPC
Insertion Loss: IL<3.6db Channel Wavelength: 1270~1610nm
Type: Rack Mount Type Logo: Can Be Customized
High Light:

1U CWDM Mux Demux Module

,

CWDM Mux Demux Module 18CH

,

19" CWDM Mux Demux

Product Description

19" 1U CWDM Mux Demux 18CH 1270-1610nm Fiber Optical CWDM Mutiplexer



Product Description

Hilink's 1U 19" Rack Mounted 18CH CWDM Mux Demux Module CWDM Mux/Demux Module is over a single or duplex single mode fiber to extend overall bandwidth WDM.

It offers high stability and reliability, and has compact package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18channels with 20nm channel spacing.



Features



* Very Low Insertion Loss

* High Isolation
* High Reliability and Stability
* Low PDL
* Compact Design
* Good channel-to-channel uniformity
* Wide Operating Wavelength: 1270nm-1610nm (1261nm~1611nm)
* Operating Temperature: -20 to +70℃
* Industrial Operating Temperature: -40 to +80℃



Parameters 18CH
Mux Demux
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) +0.5
Channel Spacing (nm) 20
Channel Passband (@-0 5dB bandwidth (nm) >13
Insertion Loss (dB) ≤3.1
Channel Uniformity (dB) ≤1.5
Channel Ripple (dB) 0.3



lsolation (dB)


Adjacent N/A >30
Non- adjacent N/A >40
Inertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifing (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 500
Opterating Temperature (°C) -20~+70
Storage Temperature (°C) -40~85



















































Applications


* CWDM System

* Add/Drop
* PON Networks
* CATV Links

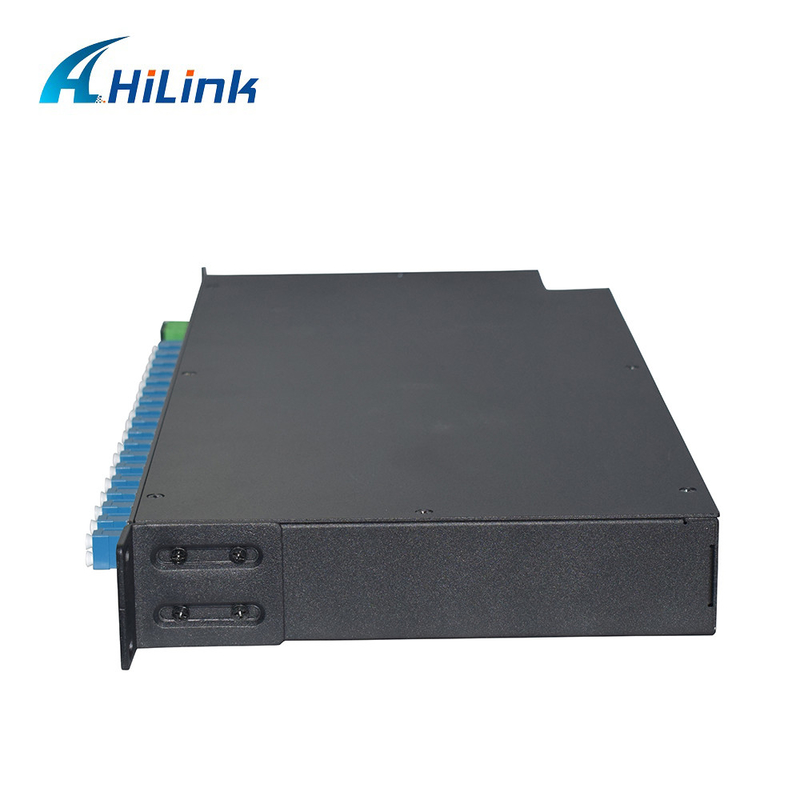

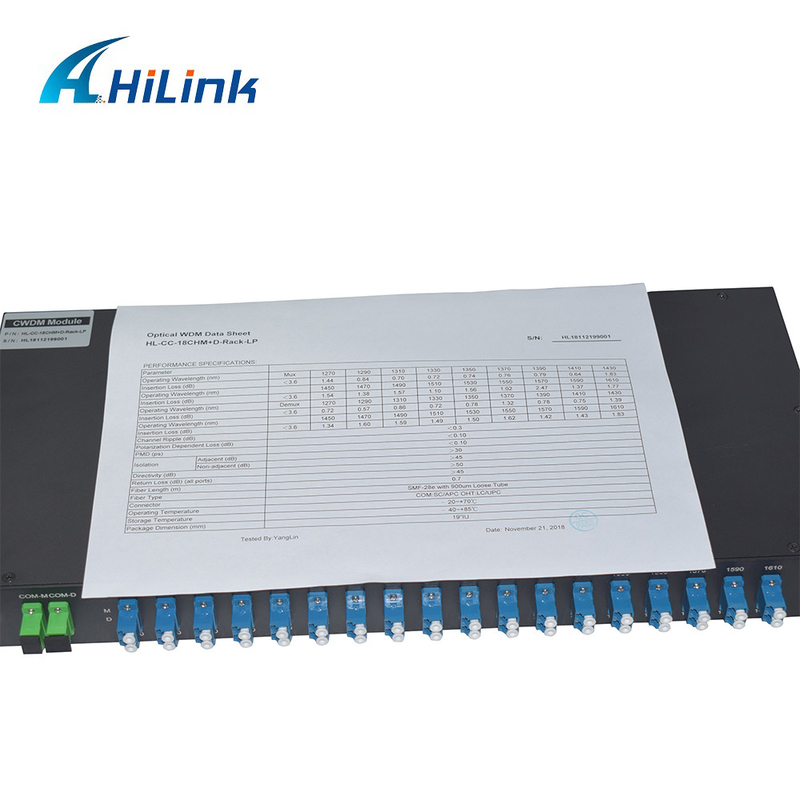

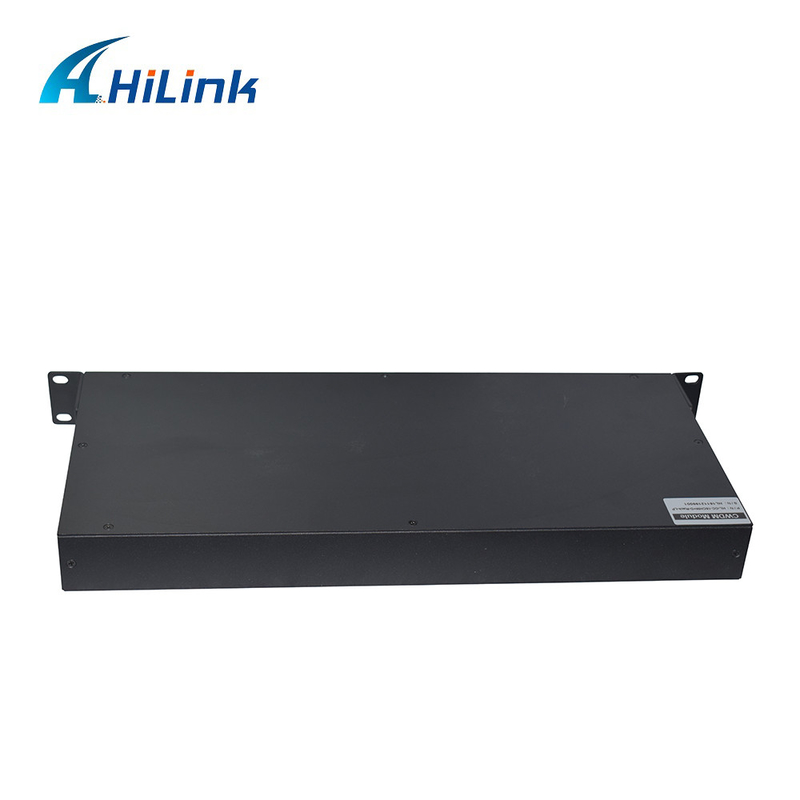

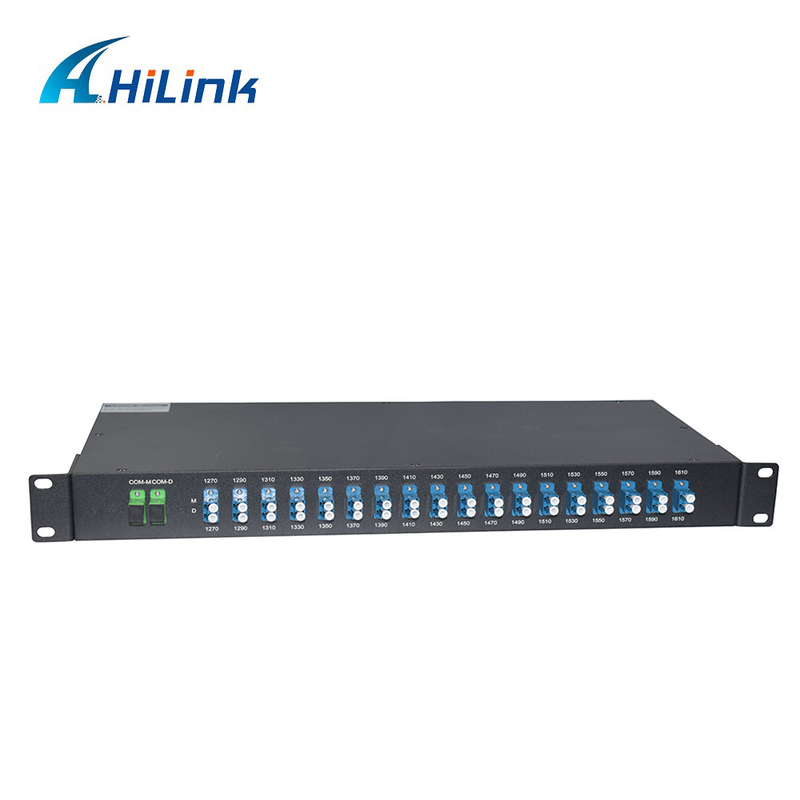

Details Images



19" 1U CWDM Mux Demux Module 18CH 1270-1610nm Fiber Optical CWDM Mutiplexer 0

19" 1U CWDM Mux Demux Module 18CH 1270-1610nm Fiber Optical CWDM Mutiplexer 1



Hilink Advantages


1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
    Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc
.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.


FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.



2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
