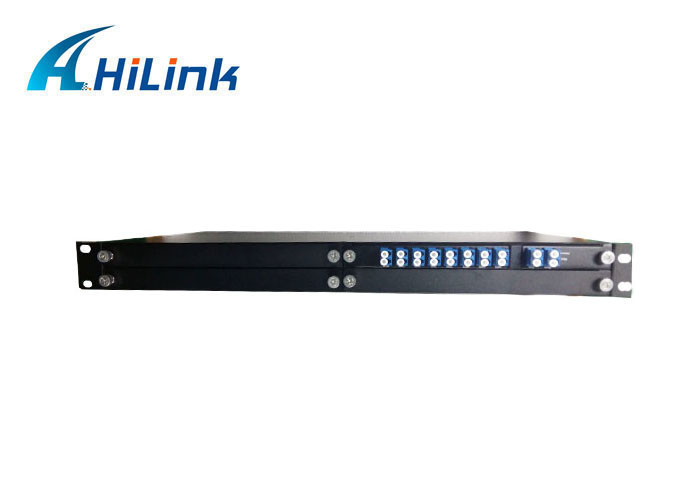

OADM CWDM Mux Demux Module

OADM CWDM Mux Demux Module

    • OADM CWDM Mux Demux Module
    • OADM CWDM Mux Demux Module
  • OADM CWDM Mux Demux Module

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: ISO CE ROHS
    Model Number: HL-CW-ODX-XXXX

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Contact Now
    Detailed Product Description
    Package: ABS, RACK , LGX Connectors: SC LC FC ST
    Wavelength: 1270nm~1610nm Channel Pass: +/-7.5 +/-6.5
    Channel Space: 20nm Fiber Type: Dual Strand Duplex
    High Light:

    cwdm multiplexer


    cwdm filter

    3CH Channels CWDM Mux Demux Module , Duplex East CWDM OADM Optical Add / Drop Left/Right



    Hilink dual CWDM OADM for East-and-West Traffic(Right and Left)
    The dual CWDM/AD modules add (multiplex) and drop (demultiplex) selected wavelengths over dual fiber Dual CWDM MUX & DEMUX link for East-and-West Traffic.
    The CWDM/AD is a passive optical add/drop multiplexer designed for point-to-point, ring, or bus configurations' applications that provides the ideal solution for the increasing bandwidth demand on enterprise and metro access networks and delivers dramatic cost savings to network equipment manufacturers, enabling them to develop metro access systems that are lower in cost, easier to configure and operate with good function performance.
    The following is simplex example OADM

    OADM CWDM Mux Demux Module

    Product Features

    Low Insertion Loss

    High Isolation

    Low PDL

    Compact Design

    Good channel-to-channel uniformity

    Wide Operating Wavelength

    From 1260nm to 1620nm

    Wide Operating Temperature

    From -40°C to 85°C

    High Reliability and Stability



    CWDM WDM System

    PON Networks

    CATV Links


    Performance Specifications

    Parameter 4 Channel 8 Channel 18 Channel
    Mux Demux Mux Demux Mux Demux
    Channel Wavelength (nm) 1270~1610
    Center wavelength Accuracy (nm) ±0.5
    Channel Spacing (nm) 20
    Channel Passband (@-0.5dB bandwidth (nm) >13
    Insertion Loss (dB) ≤1.6 ≤2.5 ≤3.0
    Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5
    Channel Ripple (dB) 0.3
    Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
    Non-adjacent N/A >40 N/A >40 N/A >40
    Inertion Loss Temperature Sensitivity (dB/°C) <0.005
    Wavelength Temperature Shifting (nm/°C) <0.002
    Polarization Dependent Loss (dB) <0.1
    Polarization Mode Dispersion <0.1
    Directivity (dB) >50
    Return Loss (dB) >45
    Maximum Power Handling (mW) 500
    Opterating Temperature (°C) -5~+85
    Storage Temperature (°C) -40~85
    Package dimension (mm)

    L100 x W80 x H10 or L140xW100xH15



    We can provide the CWDM solutions service,with more than 10 years.

    OADM , CWDM +DWDM and WDM CATV EDFA,Monitor function available.

    cwdm mux with cwdm optical transceivers
