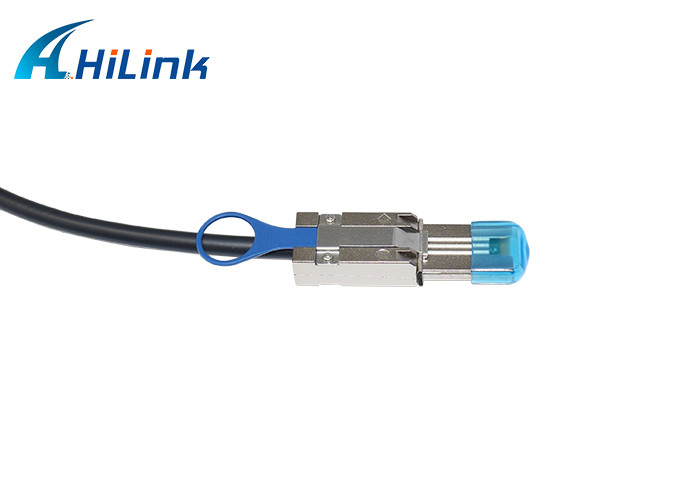

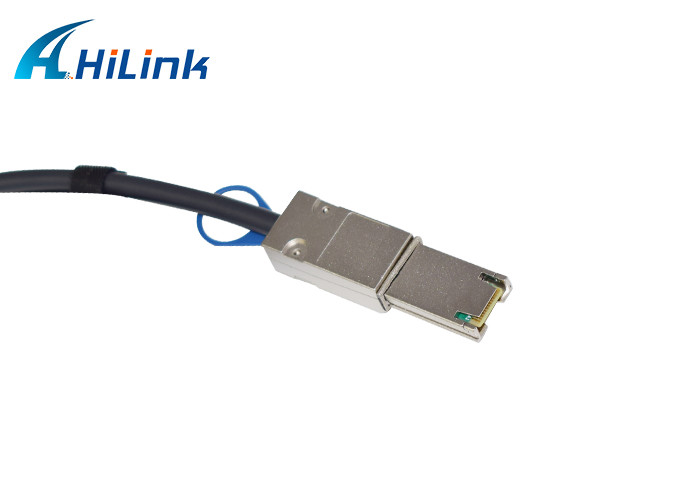

40G Mini SAS 4X Cable 8808 1M 40G SFP TO Mini SAS Connector
General Description:
The Mini SAS 4x cable plug connector and the MiniSAS 4x active plug connector are the free (plug) 26-circuit shielded compact multilane connector defined in SFF-8088 and SFF-8086.
Detailed Features:
● Connector A = SFF-8088 (Universal Key)
● Connector B = SFF-8088 (Universal Key)
● Impedance = 100 Ohms
● 8 pair wire construction
● 5-Year Warranty
● Up to 7m transmission
● Operating temperature: 0~70℃
● Exceeds SAS 1.1 and SAS 2 Specification
● RoHS Compliant
Benefits
● Cost-effective copper solution
● Lowest total system power solution
● Lowest total system EMI solution
● Optimized design for Signal Integrity
Application:
● Storage Area Networks( SAN)
● Network Attached Storage
● Storage Servers
High Speed Characteristics
| Parameter | Symbol | Min | Typ | Max | Units | Notes |
| Differential Impedance | TDR | 90 | 100 | 110 | Ω | |
| Differential Insertion Loss | SDD21 | -6 | dB | 10 MHz to 4 500 MHz | ||
| -11 | 4 500 MHz to 6 000 MHz | |||||
| Differential Output/Input Reflection Coefficient | SDD22/SDD11 | ≦-10 | dB | 100MHz - 2.08GHz | ||
| ≦-7.9+13.3 × log10(f / 3 GHz) | 2.08GHz - 5.04GHz | |||||
| ≦-3.9 | 5.04GHz - 6GHz | |||||
| Differential to Common Mode Reflection Coefficient | SCD22/SCD11 | ≦-26 | dB | 100MHz - 0.84GHz | ||
| ≦-12.7+13.3×log10(f / 3 GHz) | 0.84GHz - 4.78GHz | |||||
| ≦-10 | 4.78GHz - 6GHz | |||||
| Near End Crosstalk | NEXT |
≦-26 |
dB | 100MHz - 6GHz | ||
| Differential to Common Mode Insertion Loss | SCD21 |
≦-18 |
dB | 100MHz - 6GHz | ||
| SCD21-SDD21 | ≦-10 | dB | 100MHz - 6GHz | |||
Pin Descriptions
MINI-SAS-4X Pin Function Definition
Regulatory Compliance
| Feature | Test Method | Performance |
| Electrostatic Discharge (ESD) to the Electrical Pins |
MIL-STD-883C Method 3015.7 |
Class 1(>2000 Volts) |
| Electromagnetic Interference(EMI) | FCC Class B | Compliant with Standards |
| CENELEC EN55022 Class B | ||
| CISPR22 ITE Class B | ||
|
RF Immunity(RFI) |
IEC61000-4-3 |
Typically Show no Measurable Effect from a 10V/m Field Swept from 80 to 1000MHz |
| RoHS Compliance | RoHS Directive 2011/65/EU and it's Amendment Directives (EU) 2015/863 | RoHS (EU)2015/863 compliant |
| REACH Compliance | REACH Regulation (EC) No 1907/2006 | REACH (EC) No 1907/2006 compliant |
