Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hilink |
| Certification: | CE FCC Rohs |
| Model Number: | HL-CVR-DF-SF |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pc |
| Price: | Negotiation |
| Packaging Details: | Plastic packaging, Carton |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 200PCS/month |
|
Detail Information |
|||
| Product Name: | 100G/40G Dual Fiber To Single Fiber Converter | Data Rate: | 100G/40G |
|---|---|---|---|
| Wavelength: | 1310nm | Technology: | TTF |
| Package: | LGX / 1U (4 Slots) | Operating Temperature: | -40 To +85℃ |
| Connector: | LC ( Optional0 | Certificate: | CE RoHS FCC |
| High Light: | Ethernet Bidirectional Converter Dual Fiber,1310nm Ethernet Bidirectional Converter,100G/40G Ethernet Bidirectional Converter |
||
Product Description

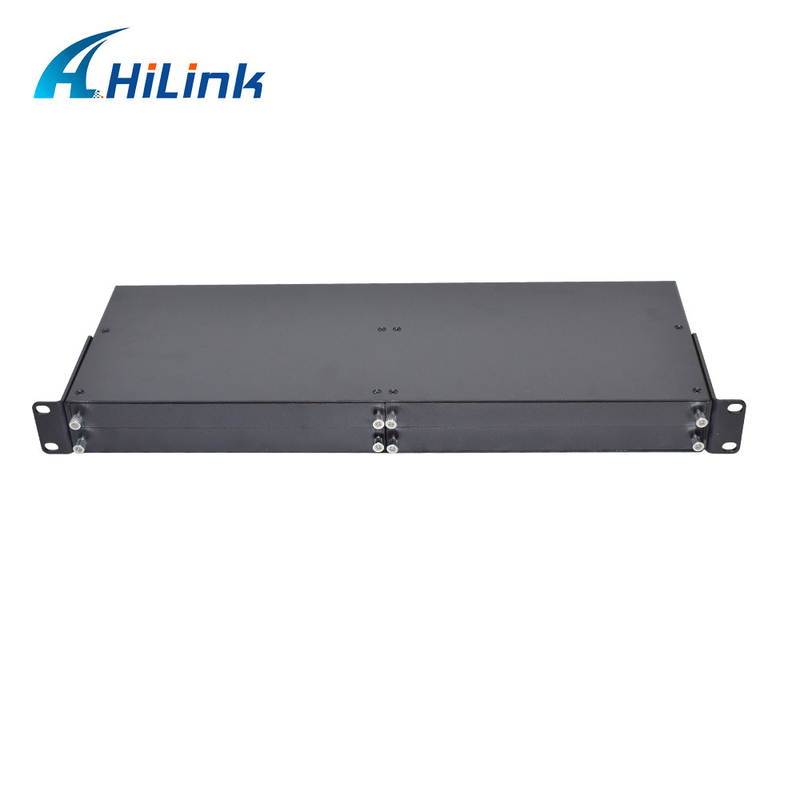

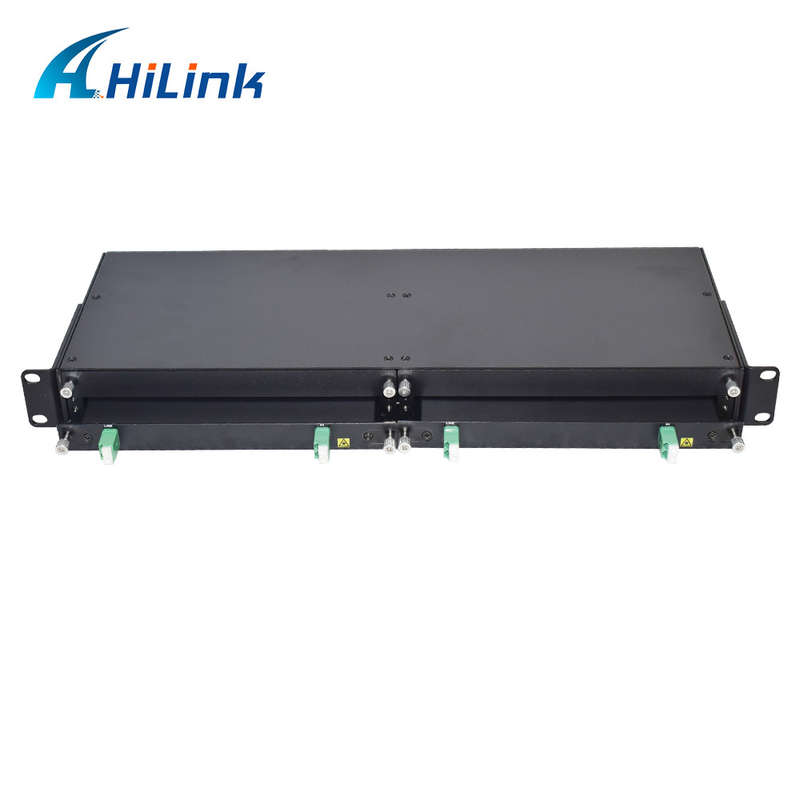

Ethernet Bidirectional Converter Dual fiber to Single fiber Working for 40G/100G LR ER ZR
With the increase of 100G data transmission with large bandwidth, optical fiber resources between data centers are becoming less and less. How to reuse existing optical fibers can save considerable costs for enterprises.
Features
* Supports 40G/100G LR4, ER4, ZR4, dual fiber to single fiber
* Operation wave 1310nm
* LC Connector
* Passive device, Low Insertion Loss
Specifications
| Wavelength | 131 0nm | Rate | 40G/100G |
| Insertion Loss | ≤1dB | Technology | TFF (Thin Film Filter) |
| Line Insertion Loss | ≤2.0dB | Isolation | ≥35dB |
| Polarization Dependent Loss | ≤0.1ps | Return Loss | ≥45dB |
| TDL (dB) | ≤0.1 5dB | PMD (ps) | ≤0.055nm |
| Return Loss | ≥45dB | Directivity | ≥45dB |
| Power handling | ≤500mW | Fiber Type | SMF- 28e |
| Connector | LC, SC, FC (UPC/APC) |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight |
LGX BOX :0.5KG 4Slot 1U Rack: 2.5KG |
Dimensions |
LGX BOX 214 5*1 50*20mm (HxWxD) 4Slot 1U Rack 44*440*1 60mm |
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
T/T, Western Union or Paypal.
3-year warranty.You'll get technique support, replacement or refund.
OEM service is provided.
