QSFP-40G-PSM-LR4 FTTH MPO Connector 10km SMF 1310NM GBIC Module

pls leave a message which compatibility Switch you need!

The HL-40G-LR4-10KM is a transceiver module designed for 10km optical communication applications. The design is compliant to 40GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 channels is 1310 nm as members of the wavelength grid defined in ITU-T G694.2. It contains a MTP/MPO connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.

Product Features

4 independent full-duplex channels

Up to 11.2Gbps per channel bandwidth

Aggregate bandwidth of > 40Gbps

MTP/MPO connector

Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard

QSFP MSA compliant

Up to10km transmission

Compliant with QDR/DDR Infiniband data rates

Single +3.3V power supply operating

Built-in digital diagnostic functions

Temperature range 0°C to 70°C

RoHS Compliant Part

Applications

Rack to rack

Data centers Switches and Routers

Metro networks

Switches and Routers

40G BASE-LR4-PSM Ethernet Links

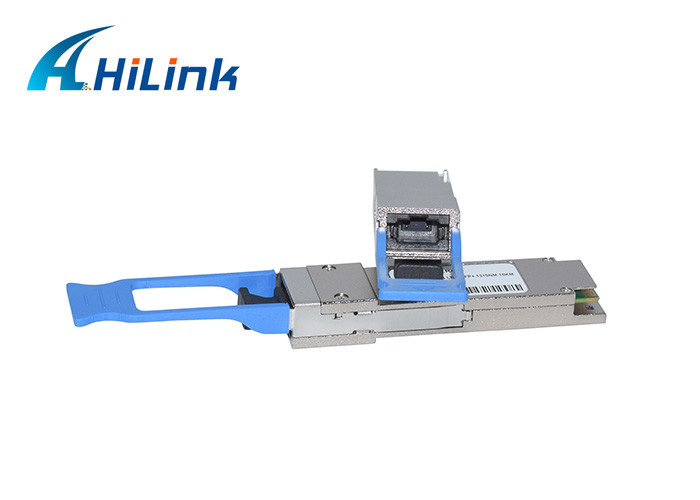

Real Photo Show
