Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Hilink |
Certification: | CE Rohs |
Model Number: | CXP-120G-SR10 |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 pieces |
Price: | Send Inquiry know latest price |
Packaging Details: | Plastic box+Carton |
Delivery Time: | 5-8 working day |
Payment Terms: | T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance |
Supply Ability: | 2000 Pieces/Week |
Detail Information |
|||
Product Name: | 120G Base SR10 CXP MMF OM3 300M Or OM4 400M MPO Connector | Data Rate: | 120G |
---|---|---|---|
Reach: | OM3 300M,OM4 400M | Use: | FTTH |
Fiber Connector: | MPO Connector | Operating Temperature: | 0 To 70℃ |
High Light: | 120G Base Fiber Optic Transceiver,CXP MMF Fiber Optic Transceiver,Fiber Optic SR10 Transceiver |
Product Description

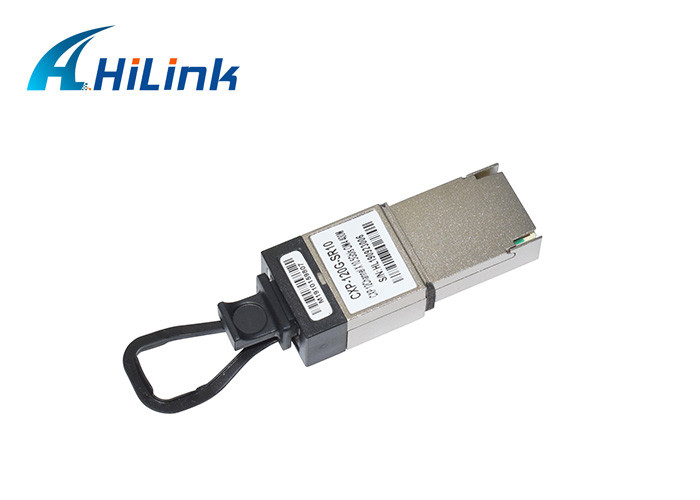

120G-CXP-SR10 Fiber Optic Transceiver 120G Base SR10 CXP MMF OM3 300M Or OM4 400M MPO Connector
120G CXP transceiver modules is a high performance, low power consumption, long reach interconnect solution supporting 120G Ethernet, Infiniband QDR DDR SDR 1G/2G/4G/8G/10G fiber channel and PCIE. It is compliant with the 120Gbits Small Form factor Hot-Pluggable CXP-interface.
Hilink 120G CXP transceiver modules is an assembly of 12 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10.5Gb/s, providing an aggregated rate of 120Gb/s.
Features
12-channel full-duplex transceiver module
Hot Pluggable CXP footprint
Maximum link length of 300m on OM3 or 400m on OM4 Multimode Fiber (MMF)
Multirate capability: 1.06Gb/s to 10.5Gb/s per CH
Unretimed CPPI electrical interface
Requires 3.3V power supply only
Low power dissipation: <4.5W
Reliable VCSEL array technology
Built-in digital diagnostic functions
Commercial operating case temperature : 0°C to 70°C
Single MPO connector receptacle
RoHS-6 Compliant (lead-free)
Application
100GBASE-SR10 100G Ethernet
Multiple 1G/2G/4G/8G/10G Fibre Channel
Infiniband transmission at 12ch SDR, DDR and QDR
Switches, Routers
Data Centers
Other 120G Interconnect Requirement
Our Service
OEM/ODM order is available
We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
