Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |

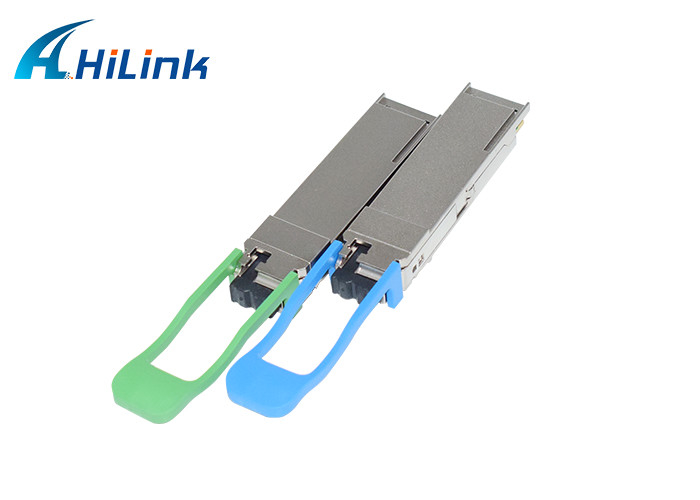

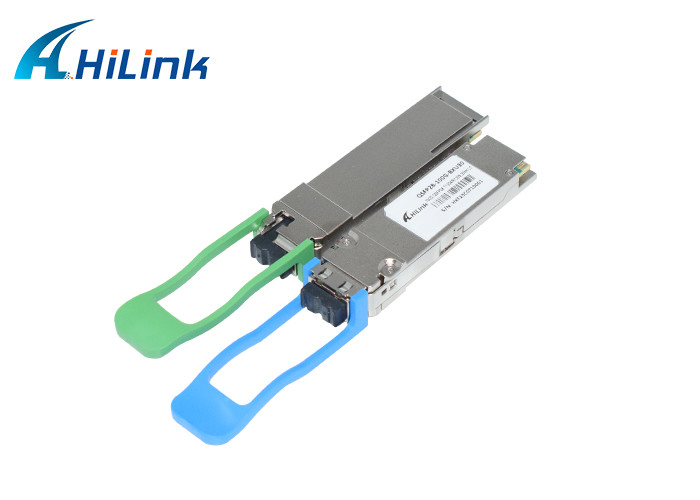

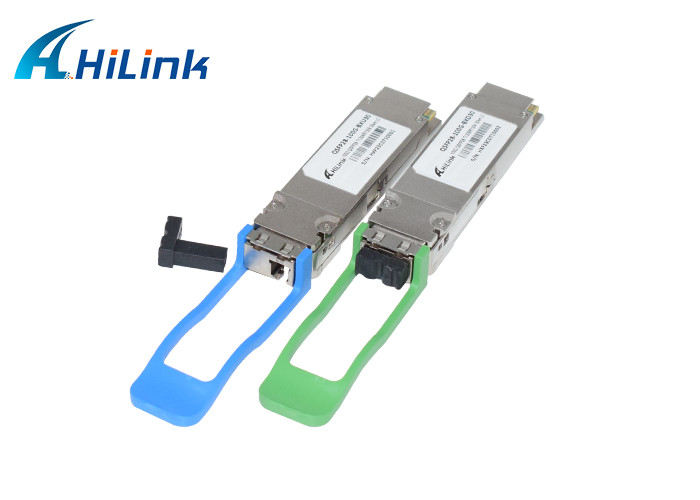

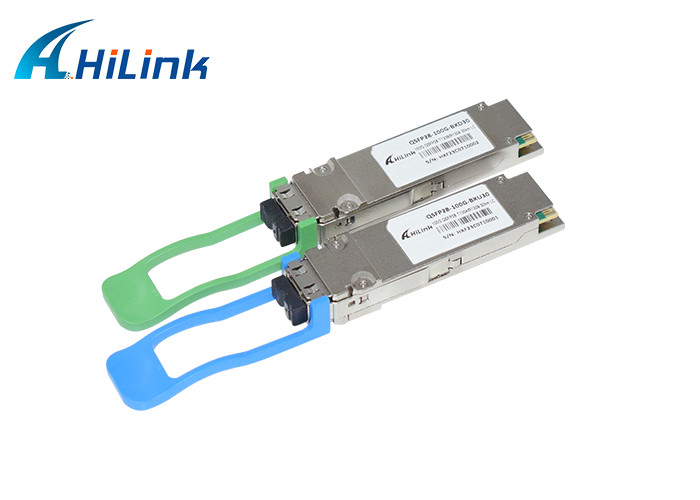

| Model Number: | HL-QSFP28-100G-BXD30 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Static bag, Plastic Flat, Retail box, by requires |
| Payment Terms: | L/C, T/T, Western Union.Paypal |
| Supply Ability: | 100/PCS/MONTH |
|
Detail Information |
|||
| Data Rate: | 100GBASE Ethernet | Distance: | 30KM |
|---|---|---|---|
| Wavelength1: | 1304nm/1309nm | Wavelength2: | 1309nm/1304nm |
| Connector: | Simplex LC Connector | Package: | QSFP28 |
| High Light: | BIDI Single Lambda Optical Transceiver,100Gb/s Optical Transceiver,QSFP28 BIDI Optical Transceiver Module |
||
Product Description
The transmitter path incorporates an EML Driver and a cooled EML together . On the receiver path, the input optical signal is coupled to a APD photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP. The electrical interface is compliant with IEEE 802.3-2022 and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G-ER1- 30 in 100G Lambda MSA standard. The module has a maximum power consumption of 4.5W.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.
|
Part No. |
Data Rate |
Laser |
Fiber Type |
Distance |
Optical Interface |
Temp |
DDMI |
Latch Color |
|
HLQSFP28-100G-BXU30 |
106.25Gbps |
Tx1304/Rx1309 |
SMF |
30km |
LC |
0~70C |
Y |
Green |
|
HLQSFP28-100G-BXD30 |
106.25Gbps |
Tx1309/Rx1304 |
SMF |
30km |
LC |
0~70C |
Y |
Blue |
