100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1
100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1
100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1 100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1

100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-QSFP28-100G-DR1
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
Contact Now
  • Detail Information
  • Product Description

Detail Information
Key Words: QSFP28 100G DR1 500M 1310nm Data Rate: 100GBASE Ethernet
Distance: 500M Wavelength1: 1310nm
Connector: Duplex LC Connector Package: QSFP28
High Light:

QSFP28 DR1 Optical Transceiver

,

Single Lambda Optical Transceiver

,

100Gb/s QSFP28 Optical Transceiver

Product Description

100Gb/s QSFP28 DR1 Single Lambda 1310nm 500M With FEC Optical Transceiver


General:
          This product is a transceiver module designed for 500m optical communication applications. The module incorporates one channel optical signal, on 1310nm center wavelength, operating at 50Gbaud data rate. The transmitter path incorporates an EML Driver and a cooled EML together. On the receiver path, the input optical signal is coupled to a Pin photodiode detector. A DSP based gearbox is used to convert 4x25Gbps NRZ signals to 1x50Gbaud PAM4 signal. Also a 4-channel retimer and FEC block are integrated in this DSP. The electrical interface is compliant with IEEE 802.3cd and QSFP28 MSA in the transmitting and receiving directions, and optical interface is compliant to IEEE 802.3cd and 100G Lambda MSA with Duplex LC connector. The module has a maximum power consumption of 4.5W.
The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

Product Features:
QSFP28 MSA compliant
Supports 53.125Gbaud
IEEE 802.3cd 100GBASE-DR Specification compliant
Up to 500m transmission on single mode fiber (SMF) with FEC
Operating case temperature: 0 to 70oC
4x25G electrical interface (OIF CEI-28G- VSR)
Maximum power consumption 4.5W
LC duplex connector
RoHS compliant



Applications:
Data Center Interconnect
100G Ethernet
Enterprise networking


Order Information:

HLQSFP28-100G-DR1

100G QSFP28 DR 500m Single Lambda with FEC optical transceiver with full real-time digital diagnostic monitoring and pull tab

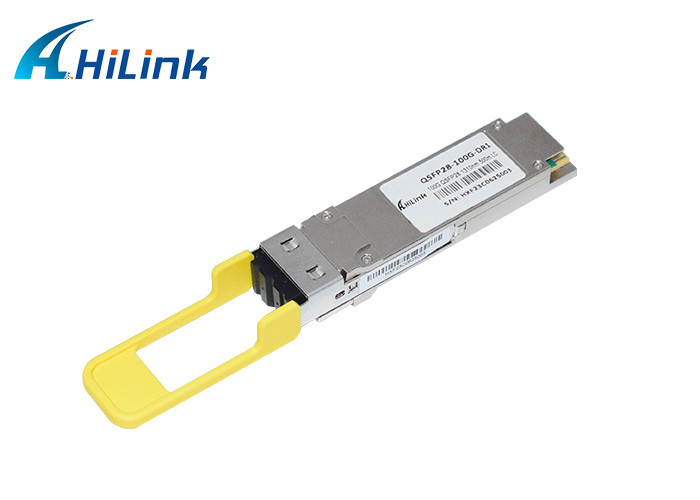

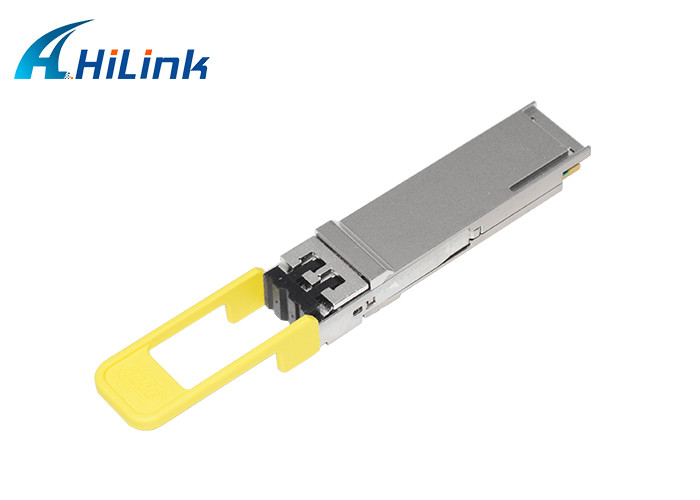

Product Picture Show:

100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1 0100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1 1100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1 2100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1 3


Mechanical Dimensions:
100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1 4

Company Information:
100Gb/S QSFP28 DR1 Optical Transceiver Single Lambda 1310nm 500M With FEC HLQSFP28-100G-DR1 5
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
    2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
    3>Confirm and ship the goods, then tracking number will be sent to you promptly.
    4>We will help to track your goods until you receive them safely.


As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
