1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance

1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance

    • 1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance
    • 1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance
  • 1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance

    Product Details:

    Place of Origin: Shenzhen , Guangdong , China
    Brand Name: HiLink
    Certification: CE ROHS FCC
    Model Number: HL-XFP-10G-ER

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
    Delivery Time: 2-5 days
    Payment Terms: T/T, Western Union , L/C ,AliExpess , Alipay , etc
    Supply Ability: 1500 pieces / month
    Contact Now
    Detailed Product Description
    Module Name: XFP-10G - ER Data Rate (max): 10.3125Gbps
    Transmission Distance: 40Km Wavelength: 1550nm
    Connector: Duplex LC Connector Fiber Type: Single - Mode

    This module can be make to be compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.


    1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance


    DESCRIPTION :

    l The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for datacom and telecom applications.

    FEATURES :
    • Hot pluggable
    • Support 9.95Gb/s to 11.1Gb/s bit rates
    • Below 3.5W power dissipation
    • XFP MSA package with duplex LC connector
    • Digital Diagnostic Monitor Interface
    • Very low EMI and excellent ESD protection
    • Cooled 1550nm EML laser and PIN ROSA
    • Up to 40KM for single mode fiber
    • operating temperature range 0°C to 70°C
    • No reference clock requirement
    APPLICATION :
    • 10G BASE-LR/LW Ethernet
    • SONET OC-192/SDH STM-64
    • Other optical links
    STANDARD :
    • XFP MSA compliant
    • IEEE802.3ae-2002 compliant
    • ITU-T G.959 and G.691 compliant
    • GR-253-CORE compliant
    • RoHS compliant




    Transmitter (0~70@9.953Gb/s~11.1Gb/s)
    Parameter Symbol Min. Typ. Max. Unit Note
    Operating Date Rate   9.95   11.1 Gb/s
    Ave. Output Power Po -1   2 dBm 1
    Output Centre Wavelength λ 1530   1565 nm
    Disable Power Poff     -30 dBm
    Extinction Ratio ER 8.2     dB 1
    Sidemode Supression Ratio   30     dB
    Rise/Fall Time (20%~80%) Tr/Tf     45 ps
    Dispersion penalty       2 dB 1
    Generation Jitter 1(20KHZ-80MHZ)       0.3 UIp-p 1
    Generation Jitter 2(4MHZ-80MHZ)       0.1 UIp-p 1
    Optical Eye Mask 1   GR-253-CORE/ITU-T G.691 1
    Optical Eye Mask 2   IEEE802.3ae 2
    Reeceiver (0~70@9.953Gb/s~11.1Gb/s)
    Parameter Symbol Min. Typ. Max. Unit Note
    Operating Date Rate   9.95   11.1 Gb/s
    Overload Po 0.5     dBm
    Input Centre Wavelength λ 1270   1600 nm
    Receiver Sensitivity Pmin     -16 dBm 1
    Stressed Sensitivity in OMA       -11.3 dBm 2
    LOS Assert LosA -30     dBm
    LOS De-assert LosD     -18 dBm
    LOS Hysteresis   0.5   4 dB
    Optical Return Loss   14     dB
    Jitter Tolerance   GR-253-CORE/ITU-T G.783 1


    PRODUCT SHOW :

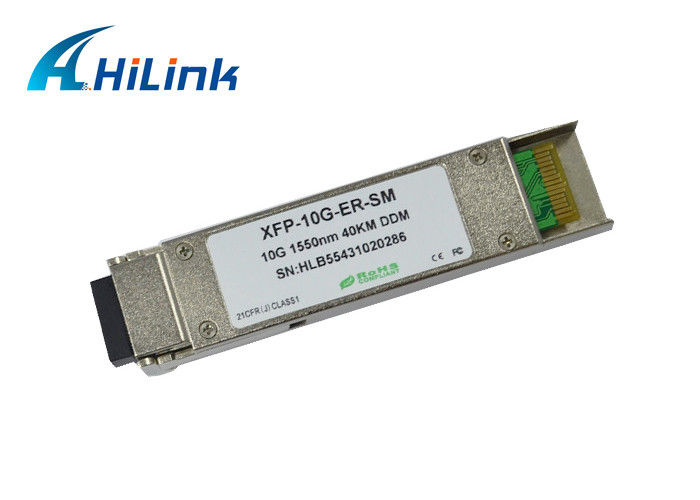

    1550nm 10G XFP ER Single Fiber Transceiver Multi Rate High Performance
