100-GHz 80Km DWDM XFP Transceiver Module , Optical Fiber Transceiver Single Mode

100-GHz 80Km DWDM XFP Transceiver Module , Optical Fiber Transceiver Single Mode

    • 100-GHz 80Km DWDM XFP Transceiver Module , Optical Fiber Transceiver Single Mode
    • 100-GHz 80Km DWDM XFP Transceiver Module , Optical Fiber Transceiver Single Mode
  • 100-GHz 80Km DWDM XFP Transceiver Module , Optical Fiber Transceiver Single Mode

    Product Details:

    Place of Origin: Shenzhen , Guangdong , China
    Brand Name: HiLink
    Certification: CE ROHS FCC
    Model Number: HL-XFP-DWDM-Cxx

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
    Delivery Time: 2-5 days
    Payment Terms: T/T, Western Union , L/C ,AliExpess , Alipay , etc
    Supply Ability: 1500 pieces / month
    Contact Now
    Detailed Product Description
    Module Name: XFP-10G - DWDM-xx Data Rate (max): 10.31Gbps
    Transmission Distance: 80km Wavelength: 100GHZ ITU DWDM
    Connector: Duplex LC Connector Fiber Type: Single - Mode

    100-GHz 80Km DWDM XFP Transceiver Module , Optical Fiber Transceiver Single Mode



    Features:

    ♦ Wavelength selectable to C-band ITU-T grid wavelengths

    ♦ Suitable for use in 100GHz channel spacing DWDM systems

    ♦ XFP MSA Compliant

    ♦ Data rate from 9.95 Gbps to 11.3Gbps

    ♦ No Reference Clock required

    ♦ Cold Start up Wavelength Compliance

    ♦ DWDM-rated EML transmitter and APD receiver

    ♦ Link length up to 80km

    ♦ Low Power Dissipation 3.5W Maximum

    ♦ -5ºC to 70ºC Operating Case Temperature

    ♦ Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power

    ♦ RoHS compliant and lead free




    Quick View

    Part Number HX-DXX-R80
    Datarate 10Gb/ps
    Wavelenth DWDM 1530.33-1561.42nm
    Distance 80km
    Transmitter Cool EML
    Receiver APD
    Media SMF
    DDM/DOM YES
    Connector LC
    Application Datacom 10G Ethernet/ 10x FC Telcom OC192/STM-64
    Operating Temperature 0℃~ +70℃
    Voltage Supply 3.3V
    Certification CE/FCC/RoHS/TUV/UL
    Brand

    CISCO,Hilink, OEM

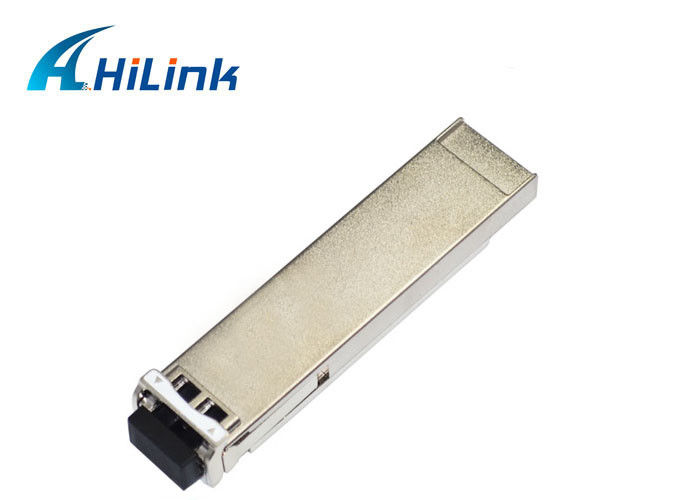

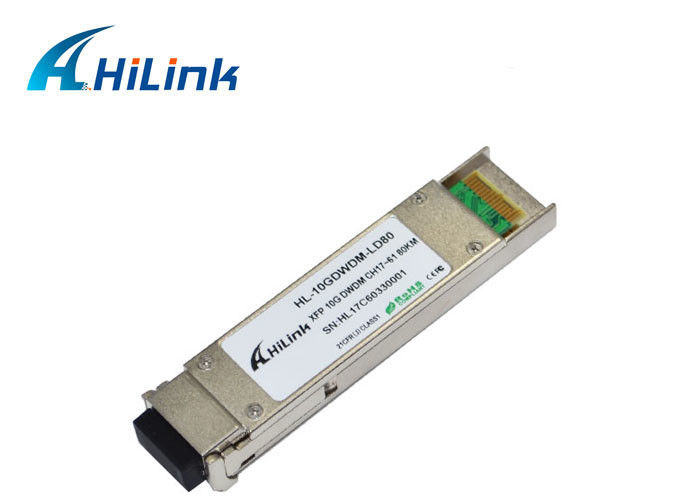

    PRODUCT SHOW :
    100-GHz 80Km DWDM XFP Transceiver Module , Optical Fiber Transceiver Single Mode
