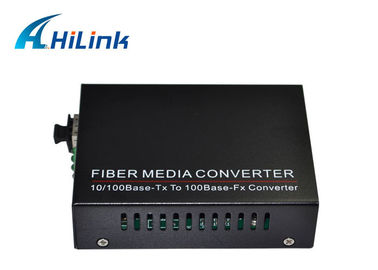

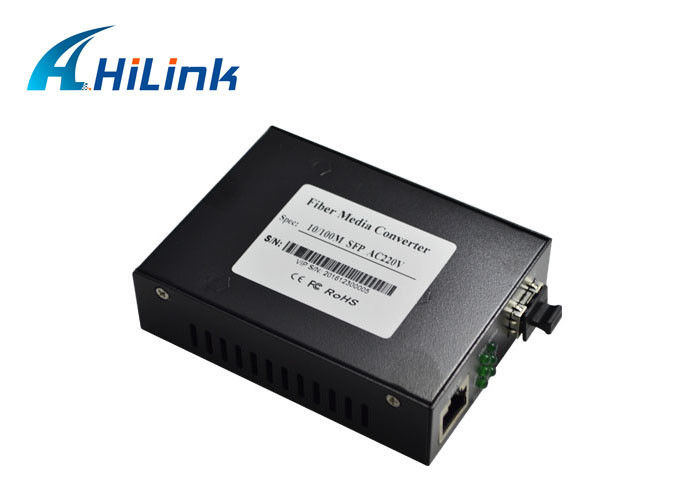

Netaxcess 10 / 100Base TX To 100Base FX Media Converter LC Connector With SFP Port / Rj45

Netaxcess 10 / 100Base TX To 100Base FX Media Converter LC Connector With SFP Port / Rj45

    • Netaxcess 10 / 100Base TX To 100Base FX Media Converter LC Connector With SFP Port / Rj45
    • Netaxcess 10 / 100Base TX To 100Base FX Media Converter LC Connector With SFP Port / Rj45
  • Netaxcess 10 / 100Base TX To 100Base FX Media Converter LC Connector With SFP Port / Rj45

    Product Details:

    Place of Origin: Shenzhen, Guangdong , China
    Brand Name: HiLink
    Certification: CE , ROHS,
    Model Number: HL-MC-10/100BASESFP

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Negotiable
    Packaging Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.
    Delivery Time: 2-5 working days
    Payment Terms: L/C, T/T, Western Union,Paypal , AliExpress , Alipay ,etc.
    Supply Ability: 3000/pieces/month
    Contact Now
    Detailed Product Description
    Product Name: 10 / 100 BASE Media Converter Port Style: SFP Style & RJ45 Port
    Data Rate: 10 / 100 BASE Auto - Negotiated Connector: LC Connector
    CE ROHS: Compliant Warranty: 3Years

    Netaxcess 10 / 100Base TX To 100Base FX Media Converter LC Connector With SFP Port / Rj45







    DESCRIPTION:



    This series converters are designed to meet the massive needs for network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 80KM.


    This series converters are fully compliant with IEEE802.3z & 802.3ab standards. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straightforward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.





    FEATURERS :



    ► 10/100Base-TX to 100BASE-FX Converter
    ► Standard : IEEE 802.3z & 802.3ab
    ► Interface: 1 x RJ-45 connector / 1 x SFP Slot
    ► MDI/MDIX Auto-Crossover supported
    ► LED: Power , DUP,FP-LINK,RX, ,TX
    ► Plug-and-Play installation
    ► Support Jumbo Frame (64-9216 Byte)
    ► Support Voltage Monitor

    ► Dimension :

    External power supply : 94 x 70.5 x 26.5 mm (W x D x H)

    Internal power supply : 140.5 x 111 x 30 mm (W x D x H)



    Item Specification/Term
    1 Item number BT-950SFP series
    2 Standard Protocol IEEE802.3u,10/100Base-T,100Base-SX/LX,IEEE802.3ah, IEEE802.3z/ab
    3 Flow control IEEE802.3x port flow control and back pressure control
    4 Transmission speed 10/100M auto-negotiation
    5 Transmission mode Full-duplex/semi duplex(auto-negotiation)
    6 Conversion mode Storage transmission
    7 MAC address VLAN 4K
    8 Buffer space 128KB
    9 Packet length Storage transmission:9728Bytes,straight-through,infinite.
    10 Time-delay 9.6us
    11 Bit error rate <1/ 000000
    12 MTBF 100,000 hours
    13 Power supply Outside: 5V DC 1A ; Build-in: 110~265V AC 48V DC
    14 Power dissipation <2.5W
    15 Interface Electric port: RJ45,Fiber port:SC/FC or SFP
    16 Twisted-pair cable Cat.5 UTP cable
    17 Multimode fiber 50/125, 62.5/125um
    18 Single mode fiber 9/125, 10/125um
    19 Wavelength 850nm/1310nm/1550nm
    20 Transmit distance
      1)Dual fiber multimode 550m
      2)dual fiber single mode 20/40/60/80/100/120Km
      3)single fiber single mode 20/40/60/80Km
      4)Cat.5 twisted-pair 100m
    21 Operating temperature 0~60℃
    22 Storage temperature -20~70℃
    23 Humidity 5%~90% (no condensation)











































    Netaxcess 10 / 100Base TX To 100Base FX Media Converter LC Connector With SFP Port / Rj45

    Netaxcess 10 / 100Base TX To 100Base FX Media Converter LC Connector With SFP Port / Rj45

    Netaxcess 10 / 100Base TX To 100Base FX Media Converter LC Connector With SFP Port / Rj45

    INSTALLATION :

    • Attach fiber cable form the media converter to the fiber network .The fiber connections must be matched transmit socket to receive socket , the TX , RX fiber cable must be paired at both ends .
    • Attach a UTP cable from the 10/100/1000BASE-T network to the RJ45 port on the media converter .
    • Connector the power adapter to the media converter and check that the Power LED lights up.The TX-LINK/ACTand FX-LINK/ACT LEDs will light up when all the cable connections are satisfactory .



    SHIPMENT & DELIVERY :




    1.  International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc.
    2.  Payment: T / T, Western Union, Paypal and so on.

    3.  Packing Details: Static bag, Plastic PVC Pack, Retail box, Technical box, or customized.





    GUARANTEE :



    ›&  Brand new.

    ›&  OEM/ODM is available.
    ›&  100% through quality test and aging test.
    ›&  3 years warranty(From the date of shipment).





    TECHNICAN SUPPORT :



    We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
    After-sales service
    We have after service for 24 hours, promises to supply technical service or guide in anytime.
    Our co-workers will be response clients's requirement in 12 hours after emergency happened.
