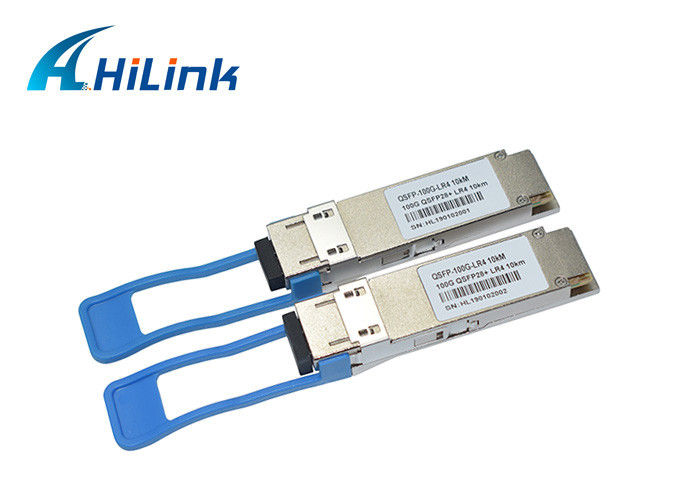

Duplex LC 100GBASE-LR4 QSFP+ Transceiver QSFP28 LR4 For Single Mode Fiber Link Systerm

Duplex LC 100GBASE-LR4 QSFP+ Transceiver QSFP28 LR4 For Single Mode Fiber Link Systerm

    • Duplex LC 100GBASE-LR4 QSFP+ Transceiver QSFP28 LR4 For Single Mode Fiber Link Systerm
    • Duplex LC 100GBASE-LR4 QSFP+ Transceiver QSFP28 LR4 For Single Mode Fiber Link Systerm
    • Duplex LC 100GBASE-LR4 QSFP+ Transceiver QSFP28 LR4 For Single Mode Fiber Link Systerm
  • Duplex LC 100GBASE-LR4 QSFP+ Transceiver QSFP28 LR4 For Single Mode Fiber Link Systerm

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China (Mainland)
    Brand Name: Hilink
    Certification: CE, RoHS, FCC
    Model Number: Hlink-QSFP28-100G-LR4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Carton box, Retail box, Or by required
    Delivery Time: 1-4 days
    Payment Terms: L/C, T/T, Western Union, Paypal
    Supply Ability: 3000 pcs per Week
    Contact Now
    Detailed Product Description
    Data Transfer Rate: 100G Max Reach: 10km
    Operating Wavelength: 1310nm Connector: Duplex LC
    DOM: Support Operating Temperature: 0-70℃

    QSFP-40G-LR4 Duplex LC 40GBASE-LR4 1310nm 10km 40G QSFP+ LR4

    The 100G QSFP28 LR4 optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated lasers (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a
    hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.



    Features:
    Duplex LC receptacle optical interface
    Single +3.3V power supply
    Hot-pluggable QSFP28 MSA form factor
    4x28G Electrical Serial Interface (CEI-28G-VSR)
    AC coupling of CML signals
    Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
    Receiver: 4x25Gb/s PIN ROSA
    Low power dissipation (Max: 4W)
    Built in digital diagnostic function
    Operating case temperature range:0℃ to 70℃
    Compliant with 100GBASE-LR4
    I2C Communication Interface

    Applications:
    100GBASE-LR4
    Infiniband QDR and DDR interconnects
    100G Datacom connections


    Standards
    Compliant with IEEE 802.3ba
    Compliant with QSFP28 MSA hardware specifications
    Compliant with RoHS
    Compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

    Our core competencies are fiber optics of CFP, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
