40G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver
40G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver 40G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver 40G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver 40G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver

40G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-QSFP-40G-80km
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic Flat, Retail box, by requires
Payment Terms: L/C, T/T, Western Union.Paypal
Supply Ability: 100/PCS/MONTH
Contact Now
  • Detail Information
  • Product Description

Detail Information
Type: 40G QSFP+ ZR4 Distance: 80 Km
Wavelength: 1271 1291 1311 1331nm Connector: DUPLEX LC
Warranty: 3 Years Operating Temperature: 0~+70℃
High Light:

40G ZR4 QSFP Optical Module

,

80KM QSFP Optical Module

,

80KM ZR4 SFP Transceiver Module

Product Description

40G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver



PRODUCT DESCRIPTIONS

         The HLPLFG80D is a transceiver module designed for 80km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.
         The central wavelengths of the 4 LANWDM channels are 1296 nm, 1300 nm, 1305 nm and 1309 nm as members of the LAN WDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.



PRODUCT FEATURES

4 CWDM lanes MUX/DEMUX design
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4 Lite
QSFP MSA compliant
APD photo-detector
Up to 80 km transmission
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part



APPLICATIONS

Rack to rack
Data centers Switches and Routers
Metro networks
Switches and Routers
40G BASE-ER4 Ethernet Links



QSFP SERIES



Part Number Product Description
HL-QSFP-40G-SR4 QSFP+,40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M
HL-QSFP-40G-LR4 QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP-40G-ER4 QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-SR4 QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M
HL-QSFP28-100G-LR4 QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP28-100G-ER4 QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-ZR4 QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM



PRODUCT PICTURE SHOW

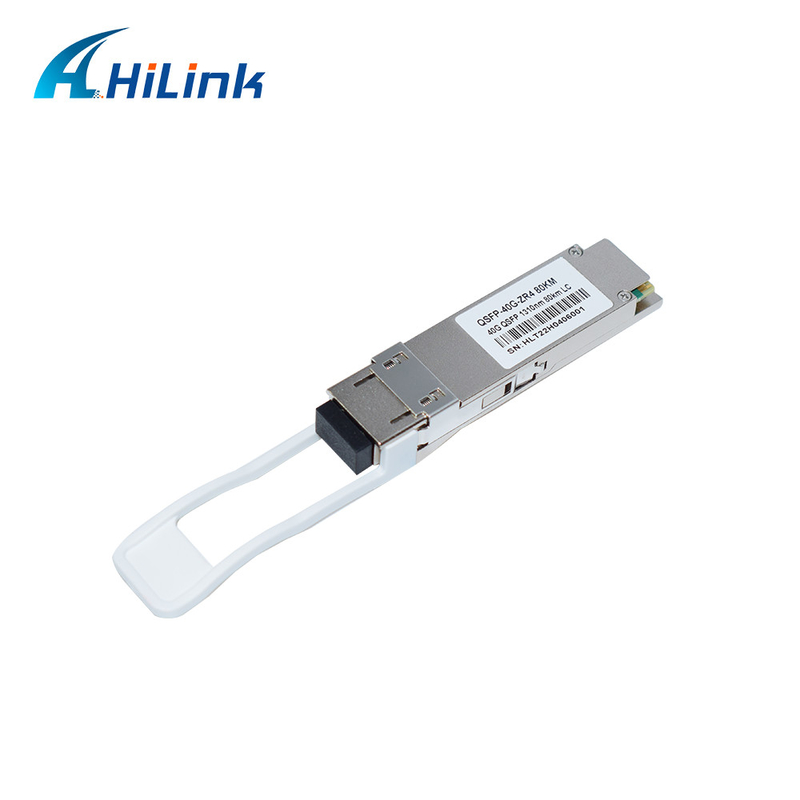

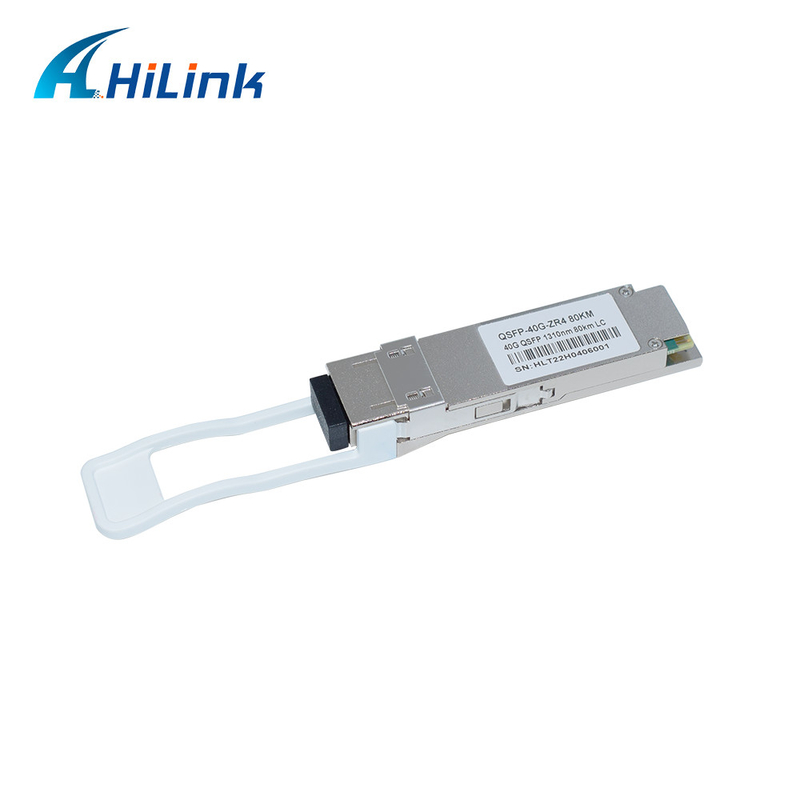

40G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver 040G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver 140G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver 2

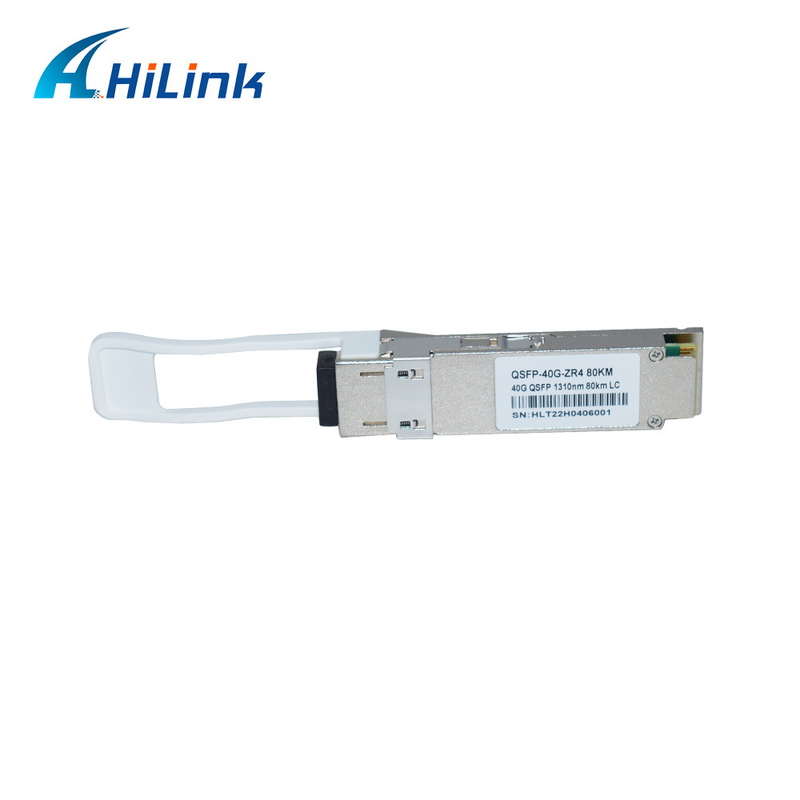

40G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver 3

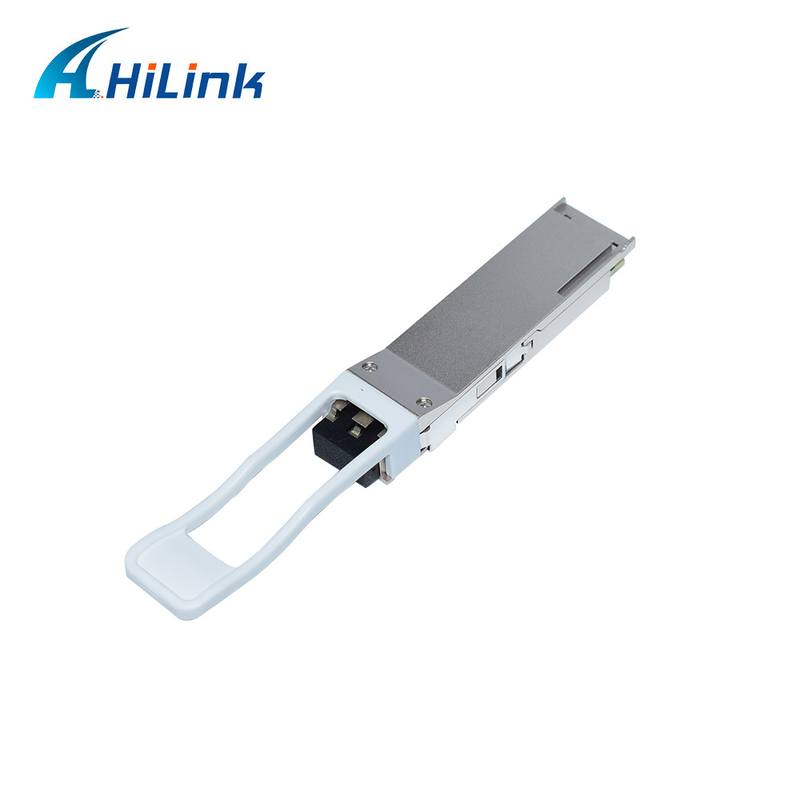

40G ZR4 80KM QSFP Optical Module LC DOM 1310nm 80KM ZR4 SFP Transceiver 4

FAQ:



Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use secont-hand components.



Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.



Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.



Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.



Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.



As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortl
