Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HILINK |
Certification: | CE FCC Rohs |
Model Number: | HL-SFP-10G-AOC20M |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1pcs |
Price: | Negotiable |
Packaging Details: | Static bag, Plastic PVC Pack, Retail box, Technical box, or customized. |
Payment Terms: | Western Union, L/C, T/T,Paypal |
Supply Ability: | 500pcs /week |
Detail Information |
|||
Manufacturer: | Hilink | Interface Type: | Gigabit Ethernet, 10G |
---|---|---|---|
Module Fiber Type: | Multi-mode | Length: | 20 Meter |
Connector: | SFP Slot, SFP Slot | Cable Type: | 50/125um Multi-mode, Active Optical |
High Light: | AOC MMF SFP+ Active Optical Cable,Multimode OM3 Active Optical Cable,OM3 AOC Optical Cable |
Product Description
AOC MMF SFP+ Active Optical Cable 850nm 20M Multimode 10G OM3
AOC SFP+ to SFP+ 10GBASE 20M 850nm AOC MMF Active Optical Cable 20M 10G OM3 Cable
General:
The Hilink SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They have very good power consumption performance. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. The length of Hilink's SFP+ Active Optical Cables is up to 150 meters on OM3 MMF.
Features:
10 Gigabit Ethernet
1x InfiniBand QDR. DDR, SDR
High-performance computing Clusters
4G and 8G Fibre Channel Applications
Servers, switches, storage, host card adapters and data center
Application:
10GBASE-SR at 10.31Gbps
InfiniBand QDR,SDR,DDR
Other optical links
Optical Characteristics:
Parameter | Symbol | Unit | Min | Typ | Max | Notes |
Optical transmitter Characteristics | ||||||
Data Rate | DR | Gbps | 9.953 | 10.3125 | 11.3 | |
Center Wavelength Range | λc | nm | 820 | 850 | 880 | |
Laser Off Power | Poff | dBm | - | - | -45 | |
Launch Optical Power | P0 | dBm | -6.0 | 1 | ||
Extinction Ratio | ER | dB | 3 | - | - | |
Spectral Width(RMS) | RMS | nm | - | 0.45 | ||
Optical Receiver Characteristics | ||||||
Data Rate | DR | Gbps | 9.953 | 10.3125 | 11.3 | |
Bit Error Rate | BER | dBm | - | - | E-12 | 2 |
Overload Input Optical | PIN | dBm | 2.4 | - | - | 2 |
SFP Cable Series:
Part Number | Description |
HL-SFP+10G-Optical cable | |
HL-SFP-10G-AOC1M | SFP+ to SFP+, Active optical cable 1M |
HL-SFP-10G-AOC3M | SFP+ to SFP+, Active optical cable 3M |
HL-SFP-10G-AOC5M | SFP+ to SFP+, Active optical cable 5M |
HL-SFP-10G-AOC7M | SFP+ to SFP+, Active optical cable 7M |
HL-SFP-10G-AOC10M | SFP+ to SFP+, Active optical cable 10M |
HL-SFP-10G-AOC20M | SFP+ to SFP+, Active optical cable 20M |
HL-SFP-10G-AOC30M | SFP+ to SFP+, Active optical cable 30M |
HL-SFP-10G-AOC50M | SFP+ to SFP+, Active optical cable 50M |
HL-SFP-10G-AOC100M | SFP+ to SFP+, Active optical cable 100M |
HL-SFP+10G Copper Cable | |
HL-SFP-H10G-CU1M | SFP+ to SFP+ Passive Copper Cable 1M |
HL-SFP-H10G-CU2M | SFP+ to SFP+ Passive Copper Cable 2M |
HL-SFP-H10G-CU3M | SFP+ to SFP+ Passive Copper Cable 3M |
HL-SFP-H10G-CU4M | SFP+ to SFP+ Passive Copper Cable 4M |
HL-SFP-H10G-CU5M | SFP+ to SFP+ Passive Copper Cable 5M |
HL-SFP-H10G-ACU7M | SFP+ to SFP+ Active Copper Cable 7M |

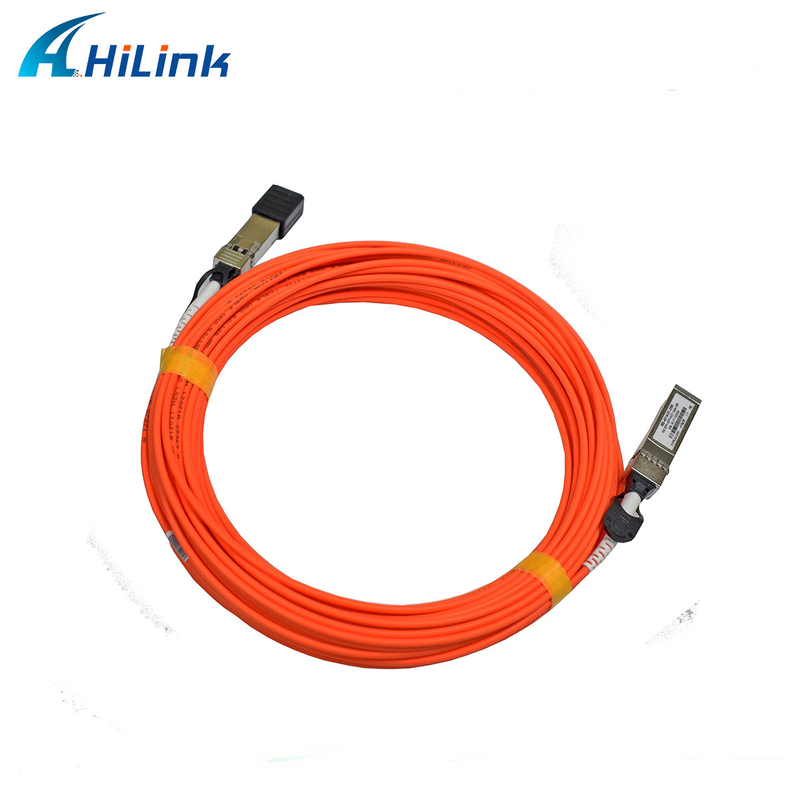

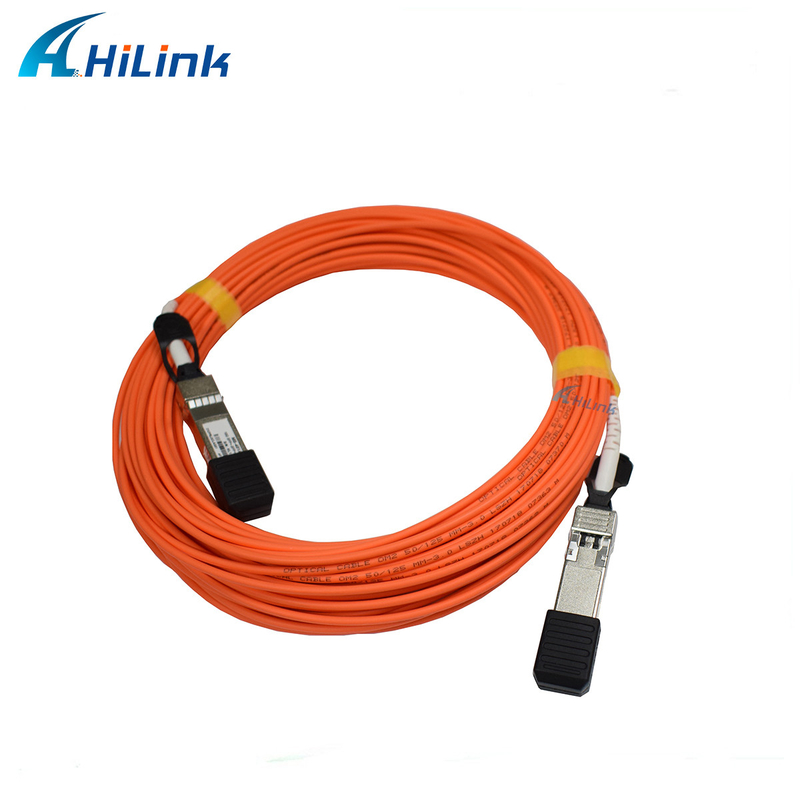

Product Picture:
What we supply:
We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+,QSFP28, SFP28, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules.
Other Cables:
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct
