    Detailed Product Description

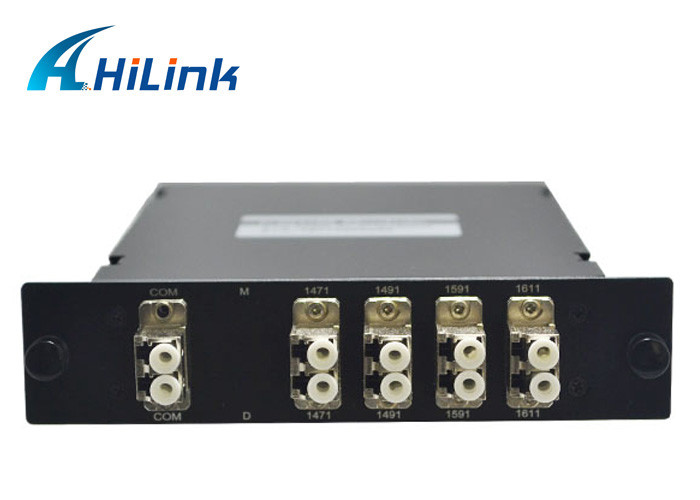

    Product Name: 8CH CWDM Mux Demux Channel Spacing: 20nm
    Fiber Type: SMF28e Or Specified Option Channels: 2ch/4ch/8ch/12ch/16ch/18ch
    Connector: SC FC LC APC UPC PC Operating Temperature: -40°C To 85°C
    Package: ABS Box,LGX Box,19' 1u Rack Mount Logo: Can Be Customized

    High Performance CWDM Fiber Optic Multiplexer -40°C - 85°C Operating Temperature



    Description

    Coarse Wavelength Division Multiplexing (CWDM) is the use of the Fiber Optical Multiplexer to different wavelengths of light signals multiplexed to a single optical fiber for transmission, at the receiving end of the link, with the Fiber Optical Multiplexer fiber mixed signal is decomposed into different wavelengths signal, connected to the respective receiving apparatus.

    100GHz CWDM Mux/Demux Module over a single or duplex single mode fiber is quite common to extend your overall bandwidth. It offer high stability and reliability, and has small package size. Its operating wavelength is from 1270nm to 1610nm(1261nm-1611nm) which totally offer 18 channels with 20nm channel spacing.



    Features

    •  Low Insertion Loss
    •  High Isolation
    •  Low PDL
    •  Compact Design
    •  Good channel-to-channel uniformity
    •  Wide Operating Wavelength
    •  From 1260nm to 1620nm
    •  High Reliability and Stability



    Applications

    CWDM System

    PON Networks

    CATV Links

    WDM networks





    Performance Specifications



    Parameter 4 Channel 8 Channel 18 Channel
    Mux Demux Mux Demux Mux Demux
    Channel Wavelength (nm) 1270~1610
    Center wavelength Accuracy (nm) ±0.5
    Channel Spacing (nm) 20
    Channel Passband (@-0.5dB bandwidth (nm) >13
    Insertion Loss (dB) ≤1.6 ≤2.5 ≤3.0
    Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5
    Channel Ripple (dB) 0.3
    Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
    Non-adjacent N/A >40 N/A >40 N/A >40
    Inertion Loss Temperature Sensitivity (dB/°C) <0.005
    Wavelength Temperature Shifting (nm/°C) <0.002
    Polarization Dependent Loss (dB) <0.1
    Polarization Mode Dispersion <0.1
    Directivity (dB) >50
    Return Loss (dB) >45
    Maximum Power Handling (mW) 300
    Opterating Temperature (°C) -5~+75
    Storage Temperature (°C) -40~85
    Package dimension (mm) L100 x W80 x H10 or L140xW100xH15



    Above specification are for device without connector.



    Ordering Information

    Configuration Number of Channels 1st Channel Fiber Type Fiber Length In/Out Connector

    M=Mux D=Demux

    O=OADM

    04=4 Channel



    08=8 Channel

    16=16 Channel

    18=18 Channel
    N=N Channel

    ……

    27=1270nm
    47=1470nm
    49=1490nm

    ……
    61=1610nm
    SS=special

    1=Bare fiber
    2=900um
    Loose tube
    3=2mm Cable
    4=3mm Cable
    1=1m
    2=2m
    S=Specify

    0=None
    1=FC/APC
    2=FC/PC
    3=SC/APC
    4=SC/PC
    5=LC

    ……
