FWDM Filter Passive WDM Fiber Optic FC ST APC UPC For System Monitoring

FWDM Filter Passive WDM Fiber Optic FC ST APC UPC For System Monitoring

    • FWDM Filter Passive WDM Fiber Optic FC ST APC UPC For System Monitoring
    • FWDM Filter Passive WDM Fiber Optic FC ST APC UPC For System Monitoring
    • FWDM Filter Passive WDM Fiber Optic FC ST APC UPC For System Monitoring
  • FWDM Filter Passive WDM Fiber Optic FC ST APC UPC For System Monitoring

    Product Details:

    Place of Origin: Shenzhen ,Guangdong ,China
    Brand Name: HiLink
    Certification: CE RoHS
    Model Number: HL-FWDM

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pieces
    Price: Negotiable
    Packaging Details: Static bag, Plastic bag, Retail box
    Delivery Time: 3-7 working days
    Payment Terms: T/T, L/C, Western Union,Paypal , AliExpress
    Supply Ability: 10000pieces/month
    Contact Now
    Detailed Product Description
    Condition: Brand New Wavelength: 1310/1490/1550
    Dimension: L90xW20xH910(mm) Temp: 0-70
    CE ROHS: Compliant OEM & ODM: Avaliable

    FWDM Filter Passive WDM Fiber Optic FC ST APC UPC For System Monitoring



    WDM Filter is an ideal solution for high power optical amplification system and WDM network.
    It based on Thin Film Filter F(TFF) technology, and be used in EDFA, Raman amplifiers, WDM networks and fiber opticsdevice.
    Hilink provides single mode and multimode WDM filter.



    FEATURES:



    1. Wide Wavelength Range

    2. Low Insertion Loss

    3. High Channel Isolation

    4. High stability and reliabilit





    APPLICATION :

    1. System Monitoring
    2. Transmitters and Fiber
    3. Fiber optical amplifier



    SPECIFICATION :



    Parameter   FWDM 3/45
    Pass Band Wavelength Range (nm) 1260 - 1360
    Reflection Band Wavelength Range (nm) 1480-1620
    Insertion Loss (dB) Reflect Channel  ≤ 0.6
    Pass Channel  ≤ 0.8
    Channel Ripple(dB)  < 0.3
    Isolation(dB) Reflect Channel  > 15
    Pass Channel  > 30
    Insertion Loss Temperature Sensitivity (dB/℃)  < 0.005
    Polarization Dependent Loss (dB)  < 0.1
    Polarization Mode Dispersion (ps)  < 0.1
    Directivity (dB)  > 50
    Return Loss (dB)  > 50
    Maximum Power Handling(mW) 500
    Operating Temperature (℃) 0 ~ + 70
    Storage Temperature (℃) - 40 ~ + 85
    Package Dimension (mm)

    1.Φ5.5 x L38(for 900um Loose tube or bare fiber )

    2.L90xW20xH9.5(for 2.0 mm or 3.0mm Cable)





    PRODUCT SHOW :

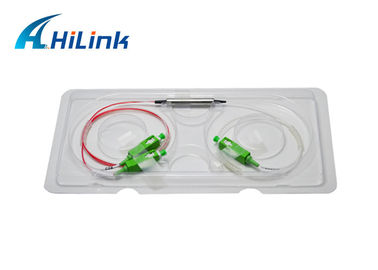

    FWDM Filter Passive WDM Fiber Optic FC ST APC UPC For System Monitoring



    OUR SERVICE :

    1.  Contact our sales for more details to confirm your order.
    2.  Short lead time after confirmation.
    3.  We deliver goods by international Express.
    4.  Quick response for customers' feedback and other questions.
    5.  OEM/ODM order is available.

    As we have various kinds of products,if you can't find the correct items you need,please send us an inquiry.We will reply shortly.


    Welcome to contact us when you have problems !
