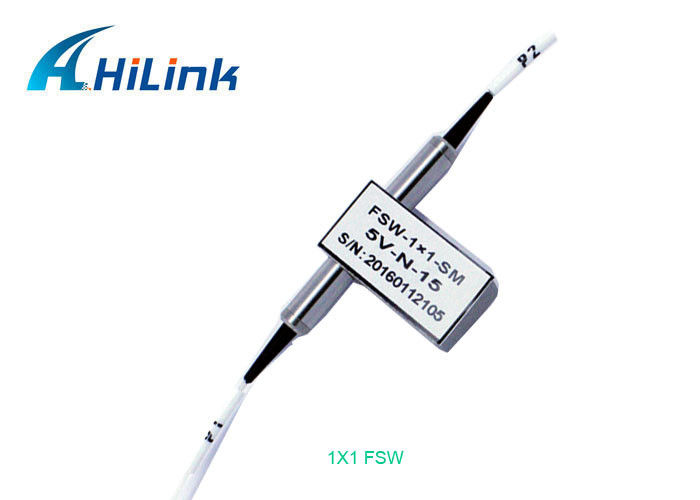

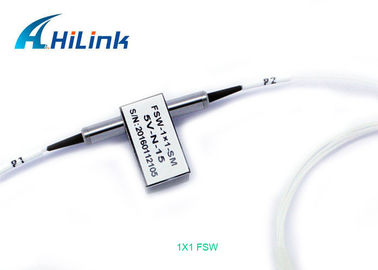

1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving

1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving

    • 1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving
    • 1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving
  • 1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China (Mainland)
    Brand Name: Hilink
    Certification: CE RoHS
    Model Number: HL-SW1X1-xx

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pcs
    Price: Negotiable
    Packaging Details: Static bag, Plastic PVC Pack, Retail box
    Delivery Time: 1-4 working days
    Payment Terms: Western Union, L/C, T/T
    Supply Ability: 5000pcs/week
    Contact Now
    Detailed Product Description
    Fiber Type: 1x1 Wavelength: 850 Or 1260nm~1620nm
    Connector: LC/SC/ST Operating Temperature: -20~70℃
    Application: OADM Control: Non Latching

    1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving



    General

    1x1 Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical proprietary configuration and activated via an electrical control signal.



    1x1 Mechanical Optical Switch support all wavelength at 1260nm~1650nm or 850nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance



    Features

    ♦ Low Insertion loss

    ♦ Wide Wavelength Range

    ♦ Low Crosstalk

    ♦ High Stability, High Reliability

    ♦ Epoxy-free on Optical Path

    ♦ Latching and Non-latching



    Applications

    ♦ Channel Blocking

    ♦ Configurable Add/Drop

    ♦ System Monitoring

    ♦ Single mode or Multimode optional





    1X1 Applications
    Optical Network
    Protection/Restoration
    Optical Singnal Routing
    Configurable Optical Add/Drop



    Optical Route



    Status A Status B

    Micro 1x1 Mechanical Fibre Optical Switch Module SM 3V Latching Module

             1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving



    1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving



    Specification

    Parameters   FSW-1×1-xx
    Wavelength Range nm 850±40/1300±40 1260~1650
    Operating avelength nm 850/1300 1310/1490/1550/1625/1650
    Insertion Loss dB Typ:0.5 Max:0.8 Typ:0.4 Max:0.6
    Return Loss dB MM≥30 SM≥50
    Crosstalk dB MM≥35 SM≥55
    PDL dB ≤0.05
    WDL dB ≤0.25
    TDL dB ≤0.25
    Repeatability dB ≤±0.02
    Power Supply v 3.0 or 5.0
    Lifetime times ≥107
    Switch Time ms ≤8
    Transmission Power mW ≤500
    Operating Temperature -20~+70
    Storage Temperature -40~+85
    Weight g 16
    Dimension mm (L)27.0×(W)12.0×(H)8.2 or customization



    Order Information

    Mode Wavelength Voltage Type Control Type Fiber Type Fiber Diameter Fiber Length Connector
    S=SM
    M=MM
    85=850nm
    13=1310nm
    15=1550nm
    13/15=1310/1550nm
    X=Others
    3=3V
    5=5V
    L=Latching
    N=Non- Latching
    5=50/125
    6=62.5/125
    9=9/125
    X=Others
    25=250um
    90=900um
    20=2.0mm
    30=3.0mm
    X=Others
    1=1m
    2=2m
    X=Others
    0=None
    1=FC/PC
    2=FC/APC
    3=SC/PC
    4=SC/APC
    5=ST/PC
    6=ST/APC
    7=LC/PC
    8=LC/APC


    1x1 Configurable Add / Drop Mechanical Optical Switch Mini Low Crosstalk Energy Saving
