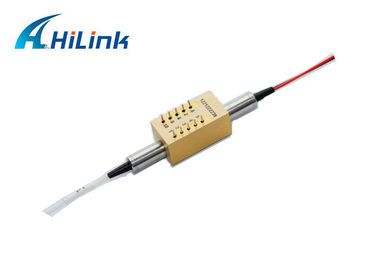

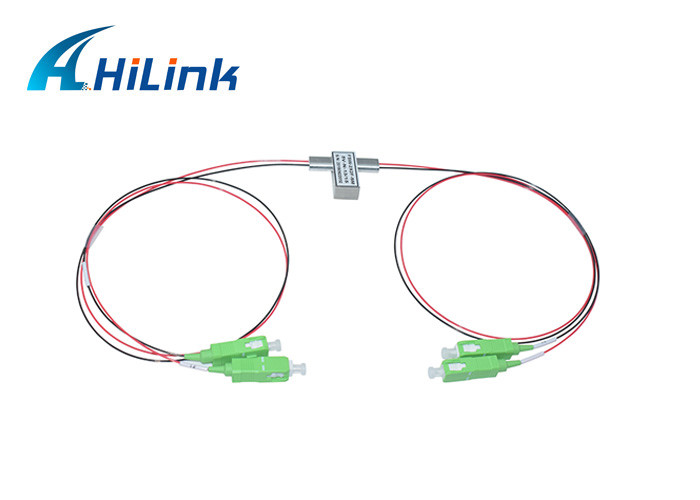

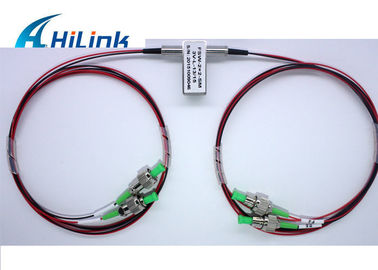

SC APC Mechanical Latching Fiber Bypass Switch , Multimode 2X2 Optical Switch

SC APC Mechanical Latching Fiber Bypass Switch , Multimode 2X2 Optical Switch

    • SC APC Mechanical Latching Fiber Bypass Switch , Multimode 2X2 Optical Switch
    • SC APC Mechanical Latching Fiber Bypass Switch , Multimode 2X2 Optical Switch
  • SC APC Mechanical Latching Fiber Bypass Switch , Multimode 2X2 Optical Switch

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE, ROHS, FCC
    Model Number: FSW- 2x2b-MMF

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiable
    Packaging Details: Poly bag
    Delivery Time: 1-3 days
    Payment Terms: T/T, Western Union
    Contact Now
    Detailed Product Description
    Wavelength: 850nm Insertion Loss: Typ:0.5 Max:1.2 DB
    Return Loss: MM≥30 DB Cross Talk: MM≥35 DB
    Media Type: Multi-mode Connector: APC FC

    SC APC Mechanical Latching Fiber Bypass Switch , Multimode 2X2 Optical Switch



    Hilink 2x2 Multi-mode Bypass Mechanical Fiber Optic Switch (2X2B MM Optical Switch) connects optical channels by redirecting an incoming optical signal into a selected output fiber.

    The 2x2B MM Bypass Mechanical Fiber Optic Switch (2X2B MM Optical Switch) support all wavelength at 850nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.



    Features

    • High Stability, High Reliability
    • Epoxy-free on Optical Path
    • Latching and Non-latching
    Specification


    Parameters   HL-FSW-2×2BXX
    Wavelength Range nm 850±40/1300±40 1260~1650
    Operating avelength nm 850/1300 1310/1490/1550/1625/1650
    Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.6 Max:0.8
    Return Loss dB MM≥30 SM≥50
    Crosstalk dB MM≥35 SM≥55
    PDL dB ≤0.05
    WDL dB ≤0.25
    TDL dB ≤0.25
    Repeatability dB ≤±0.02
    Power Supply v 3.0 or 5.0
    Lifetime times ≥107
    Switch Time ms ≤8
    Transmission Power mW ≤500
    Operating Temperature -20~+70
    Storage Temperature -40~+85
    Weight g 16
    Dimension mm (L)27.0×(W)12.0×(H)8.2 customization is available.



    2×2B MM Optical Route

    2* 2F Optical Switch Micro Optical Switch



    Pins

    Parameters Pins Electric Drive Status Sensor
    2×2B Optical Path 1 5 6 10 2-3 3-4 7-8 8-9
    Non-latching P1-P3 -- -- -- -- Close Open Open Close
    P1-P4,P2-P3 V+ -- -- GND Open Close Close Open
    latching P1-P3 -- -- GND V+ Close Open Open Close
    P1-P4 P2-P3 V+ GND -- -- Open Close Close Open






    Ordering Information:



    2×2B Fiber Optical Switch - Ordering Information: -SW-2×2F-A-B-C-D-E-F-G
    A
    B
    C
    D
    E
    F
    G
    Fiber Type
    Operating
    Voltage
    Switch Type
    Test Wavelength
    Tube Type
    Fiber Length
    (Include connector)
    Connector
    SM: SM,9/125
    M5:MM,50/125
    M6:MM,62.5/125
    X: Others
    3: 3V
    5: 5V
    L: Latching
    N: Non-latching
    850:850nm
    1310:1310nm
    1550:1550nm
    1310/1550:
    1310/1550nm
    X:Others
    25:250um
    90:900um
    X: Others
    05:0.5m±5cm
    10:1.0m±5cm
    15:1.5m±5cm
    X:Others
    OO:None
    FP: FC/PC
    FA: FC/APC
    SP: SC/PC
    SA: SC/APC
    STP: ST/PC
    LP: LC/PC
    LA: LC/APC
    X: Others
