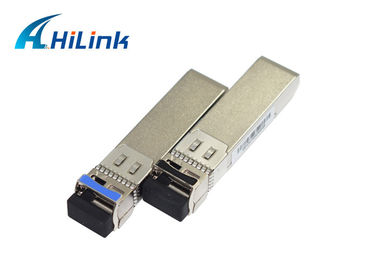

1270/1330nm 20Km 10Gb BIDI SFP+ Wdm DFB+PIN Up to 80km Easy Compatible

1270/1330nm 20Km 10Gb BIDI SFP+ Wdm DFB+PIN Up to 80km Easy Compatible

    • 1270/1330nm 20Km 10Gb BIDI SFP+ Wdm DFB+PIN Up to 80km Easy Compatible
    • 1270/1330nm 20Km 10Gb BIDI SFP+ Wdm DFB+PIN Up to 80km Easy Compatible
    • 1270/1330nm 20Km 10Gb BIDI SFP+ Wdm DFB+PIN Up to 80km Easy Compatible
  • 1270/1330nm 20Km 10Gb BIDI SFP+ Wdm DFB+PIN Up to 80km Easy Compatible

    Product Details:

    Place of Origin: CHINA
    Brand Name: Hilink
    Certification: CE,ROHS,FCC
    Model Number: HL-BIDI

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Static bag, Plastic bag, Retail box
    Payment Terms: L/C, T/T, Western Union,Paypal
    Supply Ability: 100/pcs/month
    Contact Now
    Detailed Product Description
    Data Transfer Rate: 10G Optical Interface: LC
    Product Type: 20KM 10Gb BIDI SFP Temp: 0-70
    Distance: 20KM Wavelength: 1270/1330

    1270/1330nm 20Km 10Gb BIDI SFP+ Wdm DFB+PIN Up to 80km Easy Compatible



    20Km 10Gb BIDI SFP



    Tx: 1270nm/ Rx: 1330nm BIDI SFP+ Transceiver for 10GbE

    Tx: 1330nm/ Rx: 1270nm BIDI SFP+ Transceiver for 10GbE



    Features

    Operating data rate up to10.3Gbps

    Type: 1330nmDFB Tx/1270nmRx 1270nmDFB Tx/1330nmRx

    1270nm DFB Transmitter/ 1330nm Receiver

    Distance up to 20km

    Power budget 9dB at least

    Single 3. 3V Power supply and TTL Logic Interface

    Simplex LC Connector Interface

    Hot Pluggable

    Operating Case Temperature

    Standard: 0°C~+70°C
    Industrial:-40°C~+85°C

    Compliant with MSA SFP Specification

    DDM function



    Applications

    10GBASE-LR at 10.3125Gbps

    10GBASE-LW at 9.953Gbps

    Other Optical Links



    10G BiDi SFP

    BIDI SFP+ 10G
    Part NO. Data Rate Wavelength Connector Source Output Power Sensitivity Notes
    TX/RX(nm)
    HLB223X2-LCD10/20 10Gbps 1270/1330 10-20km DFB+PIN -7~0.5dBm -14.4dBm DDM
    HLB232X2-LCD10/20 10Gbps 1330/1270 10-20km DFB+PIN -7~0.5dBm -14.4dBm



    Also for 1.25Gbps



      HAILI BIDI SFP (155M/1.25G LC Interface) With or without DDMI
    BIDI SFP 155MB LC/SC available BSFP-L155M-SU 155M 1310/1550 3km BIDI SFP 0~70 FP+PIN
    BSFP-L155M-SD 155M 1550/1310 3km BIDI SFP 0~70 FP+PIN
    BSFP-L155M-LU 155M 1310/1490 20km BIDI SFP 0~70 FP+PIN
    BSFP-L155M-LD 155M 1490/1310 20km BIDI SFP 0~70 DFB+PIN
    BSFP-L155M-E1U 155M 1310/1550 40KM BIDI SFP 0~70 FP+PIN
    BSFP-L155M-E1D 155M 1550/1310 40KM BIDI SFP 0~70 FP+PIN
    BSFP-L155M-E2U 155M 1310/1490 40KM BIDI SFP 0~70 FP+PIN
    BSFP-L155M-E2D 155M 1490/1310 40KM BIDI SFP 0~70 DFB+PIN
    BSFP-U80 155M 1310/1550 80KM BIDI SFP   DFB+PIN
    BSFP-D80 155M 1550/1310 80km BIDI SFP   DFB+PIN
    BIDI SFP 1.25GB LC/SC available BSFP-L1.25G-SU 1.25G 1310/1550 2KM BIDI SFP 0~70 FP+PIN
    BSFP-L1.25G-SD 1.25G 1550/1310 2KM BIDI SFP 0~70 FP+PIN
    BSFP-L1.25G-LU 1.25G 1310/1550 20KM BIDI SFP 0~70 FP+PIN
    BSFP-L1.25G-LD 1.25G 1550/1310 20KM BIDI SFP 0~70 DFB+PIN
    BSFP-L1.25G-EU 1.25G 1310/1550 40KM BIDI SFP 0~70 DFB+PIN
    BSFP-L1.25G-ED 1.25G 1550/1310 40KM BIDI SFP 0~70 DFB+PIN
    BSFP-U80 1.25G 1310/1550 80KM     DFB+PIN
    BSFP-D80 1.25G 15501310 80km     DFB+PIN




    1270/1330nm 20Km 10Gb BIDI SFP+ Wdm DFB+PIN Up to 80km Easy Compatible1270/1330nm 20Km 10Gb BIDI SFP+ Wdm DFB+PIN Up to 80km Easy Compatible
