Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HILINK |
Certification: | CE FCC Rohs |
Model Number: | HL-SFP-2.5-ZX |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1pc |
Price: | Negotiable |
Packaging Details: | Blister Packaging |
Delivery Time: | 3-5 Working Days |
Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
Supply Ability: | 100PCS Per Day |
Detail Information |
|||
Product Name: | Fiber SFP Modules 2.5G | Data Rate: | 2.5G |
---|---|---|---|
Distance: | 80KM | Wavelength: | 1550nm |
Connector Type: | LC Duplex | Power Supply: | 3.3V |
High Light: | SFP Dual LC Transceiver Module,2.5G 1550nm SFP Transceiver Module,80KM SFP-ZX SFP Transceiver Module |
Product Description

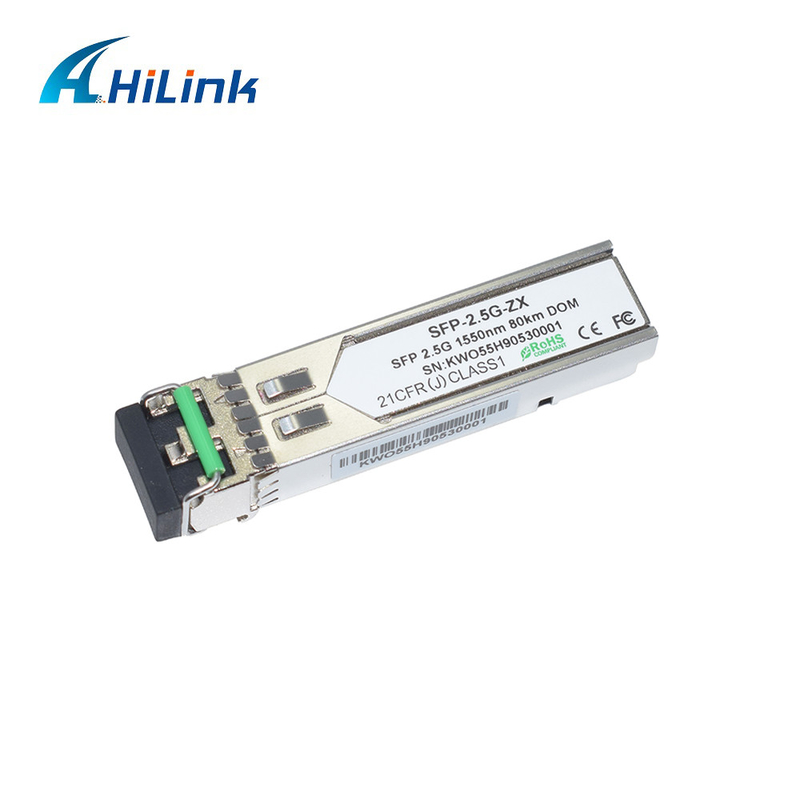

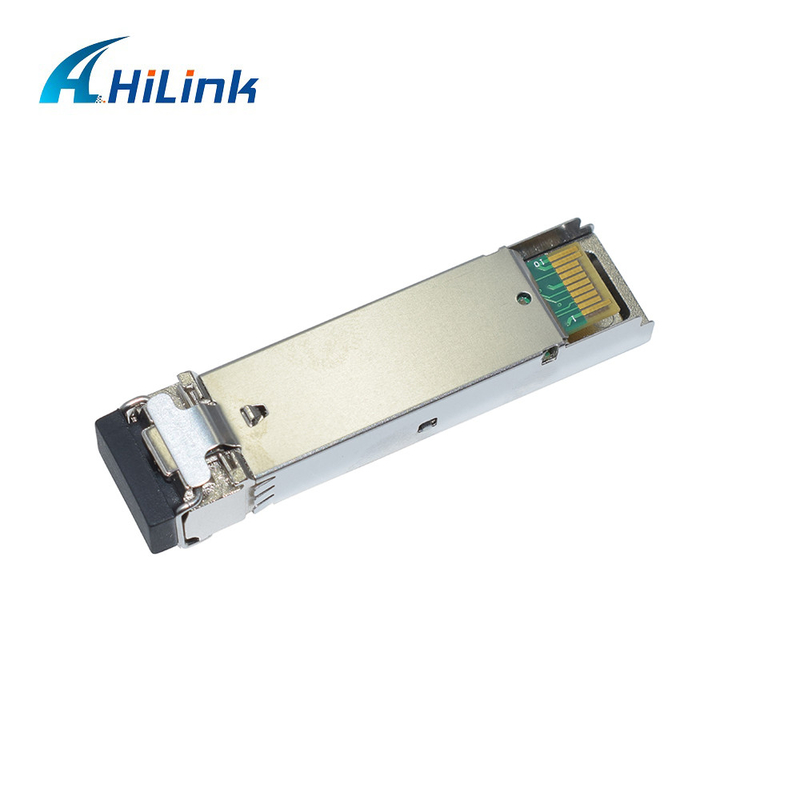

Hilink HL-SFP-2.5G-ZX Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA)
Form Type | SFP | Max Data Rate | 2.5Gbps |
Wavelength | 1550nm | Max Cable Distance | 80KM |
Interface | LC duplex | Cable Type | SMF |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) | HTS-Harmonized Code | 8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Features
Applications
Ethernet
Dual LC SFP series
Part Number | Data Rate (M/s) | Wavelength (nm) | Distance | Source | Connector |
HLSP1301L-CDM | 155 | 1310 | 500m | VCSEL/PIN | LC/PC |
HLSP1301L-CD02 | 155 | 1310 | 2km | FP/PIN | LC/PC |
HLSP3101L-CD20 | 155 | 1310 | 20km | FP/PIN | LC/PC |
HLSP3101L-CD40 | 155 | 1310 | 40km | FP/PIN | LC/PC |
HLSP5501L-CD80 | 155 | 1550 | 80km | DFB/PIN | LC/PC |
HLSP5501L-CDH1 | 155 | 1550 | 100km | DFB/PIN | LC/PC |
HLSP5501L-CDH2 | 155 | 1550 | 120km | DFB/APD | LC/PC |
HLSP8512L -CDS5 | 1250 | 850 | 550m | VCSEL/PIN | LC/PC |
HL SP3112L-CD02 | 1250 | 1310 | 2km | FP/PIN | LC/PC |
HLSP3112L-CD20 | 1250 | 1310 | 20km | FP/PIN | LC/PC |
HLSP3112L-CD40 | 1250 | 1310 | 40km | DFB/PIN | LC/PC |
HLSP5512L -CD40 | 1250 | 1550 | 40km | DFB/PIN | LC/PC |
HLSP5512L-CD80 | 1250 | 1550 | 80km | DFB/PIN | LC/PC |
HLSP5512L-CDH1 | 1250 | 1550 | 100km | DFB/PIN | LC/PC |
HLSP5501L-CDH2 | 1250 | 1550 | 120km | DFB/APD | LC/PC |
HLSP8525L-CDS3 | 2500 | 850 | 300m | VCSEL/PIN | LC/PC |
HLSP3125L-CD02 | 2500 | 1310 | 2km | FP/PIN | LC/PC |
HLSP3125L -CD20 | 2500 | 1310 | 20km | DFB/PIN | LC/PC |
HLSP3125L -CD40 | 2500 | 1310 | 40km | DFB/PIN | LC/PC |
HLSP5525L -CD40 | 2500 | 1550 | 40km | DFB/PIN | LC/PC |
HLSP5525L -CD80 | 2500 | 1550 | 80km | DFB/APD | LC/PC |
HLSP5525L -CDH1 | 2500 | 1550 | 100km | DFB/APD | LC/PC |
Details Photos
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
