Video 3G LC Connector SFP Transceiver Module , SDI / HDI SFP Bidirectional Transceiver

Video 3G LC Connector SFP Transceiver Module , SDI / HDI SFP Bidirectional Transceiver

    • Video 3G LC Connector SFP Transceiver Module , SDI / HDI SFP Bidirectional Transceiver
    • Video 3G LC Connector SFP Transceiver Module , SDI / HDI SFP Bidirectional Transceiver
  • Video 3G LC Connector SFP Transceiver Module , SDI / HDI SFP Bidirectional Transceiver

    Product Details:

    Place of Origin: China
    Brand Name: Hilink
    Certification: CE,ROHS,FCC
    Model Number: HL-SFP-BX-3G

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pair
    Price: Negotiable
    Packaging Details: Static bag, Plastic Flat, Retail box, by requires for Video BIDI SFP
    Payment Terms: T/T, Western Union, MoneyGram,Paypal
    Supply Ability: 1000pair/month
    Contact Now
    Detailed Product Description
    Data Rate: 3Gbps Wavelength: 1490/1550
    Distance: 40km Connector: LC
    Logo: Can Be Customized DDM: Yes
    Warranty: 3 Years Source: DFB

    Video 3G LC Connector SFP Transceiver Module , SDI / HDI SFP Bidirectional Transceiver



    Tx: 1490nm/Rx: 1550nm BIDI SFP Transceiver for 3GbE

    Tx: 1550nm/Rx: 1490nm BIDI SFP Transceiver for 3GbE



    Features:

    The transmit/receive data rates from 50Mbps to 2.97Gbps
    HD-SDI Bi-Directional SFP Transceiver available
    SD-SDI Bi-Directional SFP Transceiver available
    3G-SDI Bi-Directional SFP Transceiver available
    SMPTE 297-2006 Compatible.
    Metal enclosure for Lower EMI
    Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
    Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
    Digital Diagnostic functions available through the I2C



    Applications:
    SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.
    HDTV SDTV Service Interfaces.

    other SDI optical links


    The video series transceivers are high performance, cost effective modules for simplex video transmission application over single mode fiber.

    The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates.



    Specifications:

    P/N HLT3GXX-SDI10
    Datarate 50~3000 (Mb/s)
    Number of optical input N/A
    Number of optical output 1
    Typical powe rvalue (dbm) -3~14
    Sensitivity(dbm) -21
    Estimated reach @3Gb/s (km) 40Km
    Connector LC Single
    Application 3G Video System
    Operating Temperature 0℃~ +70℃
    Voltage Supply 3.3V
    Certification CE/FCC/RoHS/TUV/UL
    Brand HilinkOptics/Neutra, OEM
    Standards

    SMPTE 292M HD-SDI/ SMPTE 348M HD-SDTI SMPTE 259M SD-SDI/ SMPTE 312M SD-SDTI





    What we supply

    We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.

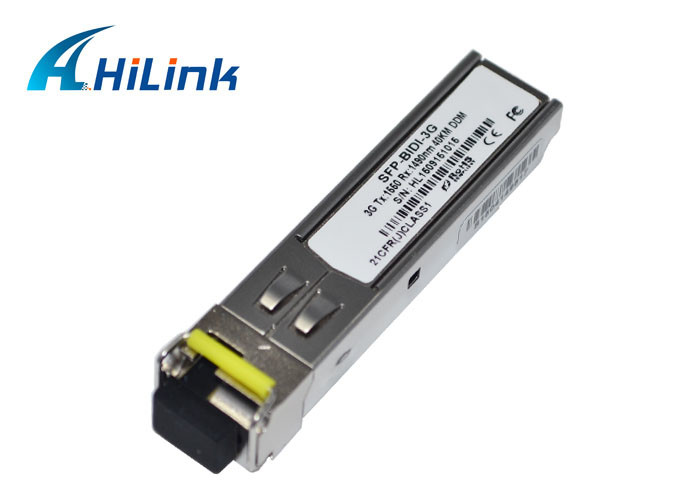

    Product picture show

    Video 3G LC Connector SFP Transceiver Module , SDI / HDI SFP Bidirectional Transceiver
