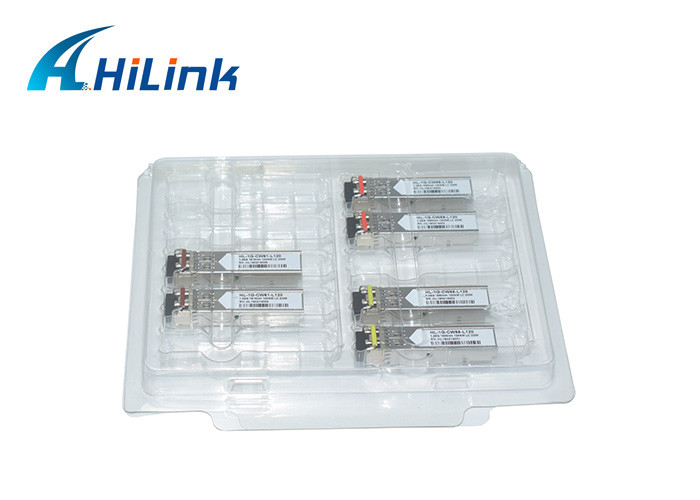

DOM SFP Transceiver Module Cisco Compatible 1000BASE-CWDM SFP 1550nm 120km

DOM SFP Transceiver Module Cisco Compatible 1000BASE-CWDM SFP 1550nm 120km

    • DOM SFP Transceiver Module Cisco Compatible 1000BASE-CWDM SFP 1550nm 120km
    • DOM SFP Transceiver Module Cisco Compatible 1000BASE-CWDM SFP 1550nm 120km
    • DOM SFP Transceiver Module Cisco Compatible 1000BASE-CWDM SFP 1550nm 120km
    • DOM SFP Transceiver Module Cisco Compatible 1000BASE-CWDM SFP 1550nm 120km
    • DOM SFP Transceiver Module Cisco Compatible 1000BASE-CWDM SFP 1550nm 120km
    • DOM SFP Transceiver Module Cisco Compatible 1000BASE-CWDM SFP 1550nm 120km
  • DOM SFP Transceiver Module Cisco Compatible 1000BASE-CWDM SFP 1550nm 120km

    Product Details:

    Place of Origin: CHINA
    Brand Name: Hilink
    Certification: CE,ROHS,FCC
    Model Number: HL-1.25-CW

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiation
    Packaging Details: Plastic box, carton
    Payment Terms: L/C, T/T, Western Union,other
    Supply Ability: 1000pcs/month
    Contact Now
    Detailed Product Description
    Name: CWDM SFP

    Cisco Compatible 1000BASE-CWDM SFP 1550nm 120km DOM Transceiver Module





    Product Features

    • Up to 1.25Gb/s dual data links
    • Hot-pluggable SFP footprint
    • Uncooled DFB laser transmitter

    in 18 possible CWDM wavelengths 1270nm~1610nm

    • APD Receiver
    • Duplex LC connector
    • Up to 120km on 9/125µm SMF
    • Metal enclosure for lower EMI
    • Single +3.3V power supply
    • Low power dissipation <700mW
    • Commercial operating temperature range: 0°C to +70°C

    Applications

    • Gigabit Ethernet
    • 1.06 Gb/s Fibre Channel

    General

    Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.





    xx Wavelength Clasp Color Code xx Wavelength Clasp Color Code
    47 1470nm Gray 55 1550nm Yellow
    49 1490nm Violet 57 1570nm Orange
    51 1510nm Blue 59 1590nm Red
    53 1530nm Green 61 1610nm Brown
